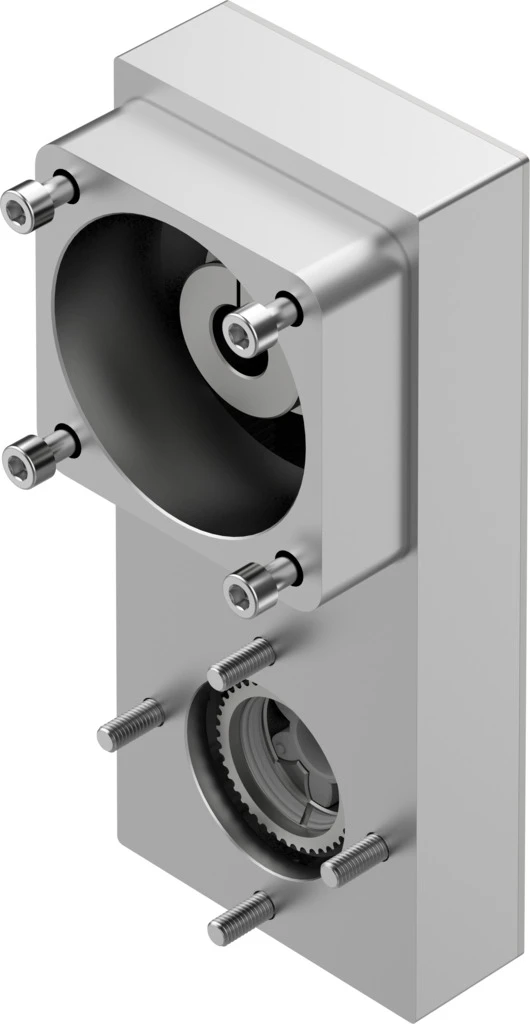

Parallel kit, EAMM-U-87-T46-80PB-114

Specifications • Parallel kits EAMM-U-...-V/T • Permissible axis/motor combinations with ball screw (spindle) axis ELGD-BS • Permissible axis/motor combinations with ball screw (spindle) axis ELGC-BS • Permissible axis/motor combinations with ball screw (spindle) axis ELGT-BS • Size 87 • Centre-to-centre distance 114 mm • Mounting position optional • Gear unit ratio 1:1 • Max. rotational speed 3000 rpm • LABS (PWIS) conformity VDMA24364 zone III • Storage temperature -20 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature 0 °C ... 50 °C • Mass moment of inertia 44.4 kgmm² • Frictional torque independent of load 0.22 Nm • Transmittable torque 3 Nm • Product weight 1062 g • Interface code, actuator T46 • Interface code, motor in 80PB, 80R • Note on materials RoHS-compliant
