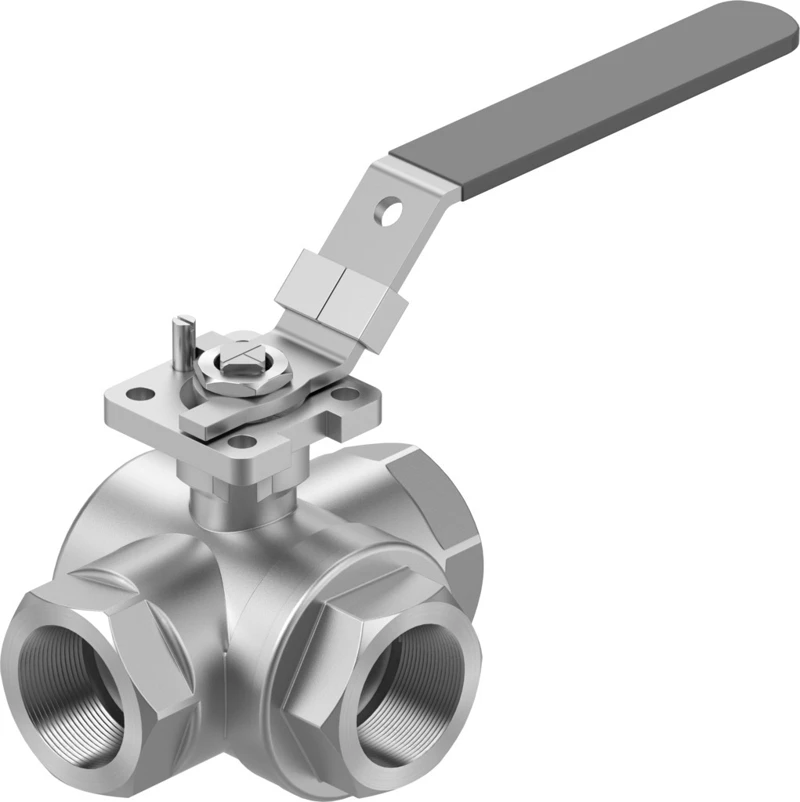

Ball valve, VZBE-11/4-T-63-F-3T-F05-M-V15V15
SKU: 8096956
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VZBE, 3-way, with hand lever and pipe thread
• Design 3-way ball valve, T-hole
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve 1 1/4 NPT
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F05
• Inside diameter 25 mm
• Nominal size DN 32
• Valve function 3/2
• Flow direction Reversible
• Flow rate Kv T hole angled 10.6 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Ball valve VZBE
• 2-way, 2-way manual or 3-way: stainless steel ball valve VZBE controls various media, both in process automation and in factory automation.
• 2-way manual, with lockable hand lever
• 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever
• Stainless steel design
• Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11
• Optionally with pre-assembled hand lever
