Ball valve, VZBF-1-P1-20-D-2-F0405-M-V15V15
SKU: 8097469
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VZBF, 2-way with hand lever
• Design 2-way ball valve
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve Flange to ANSI B16.5 class 150
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F0405
• Inside diameter 24 mm
• Nominal size DN 25
• Valve function 2/2
• Flow direction Reversible
• Flow rate Kv 87 m³/h
Buy currently uses Select Automation shop pricing and checkout.

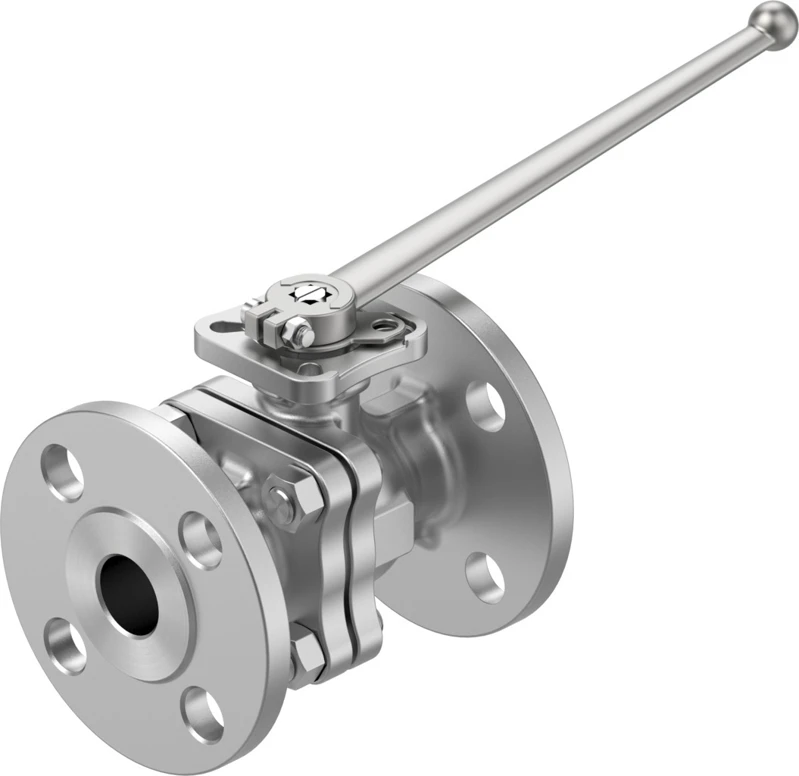

Ball valve VZBF
• The two-part stainless steel ball valve for liquid and gaseous media is easy to maintain.
• Its fire safe design complies with the requirements of API 607.
• Flanged connections to ANSI B 16.5. class 150
• Static discharge ensured
• API 607 Fire Safe certification
• Stainless steel design
• Easy to service
• Optionally with pre-assembled hand lever
