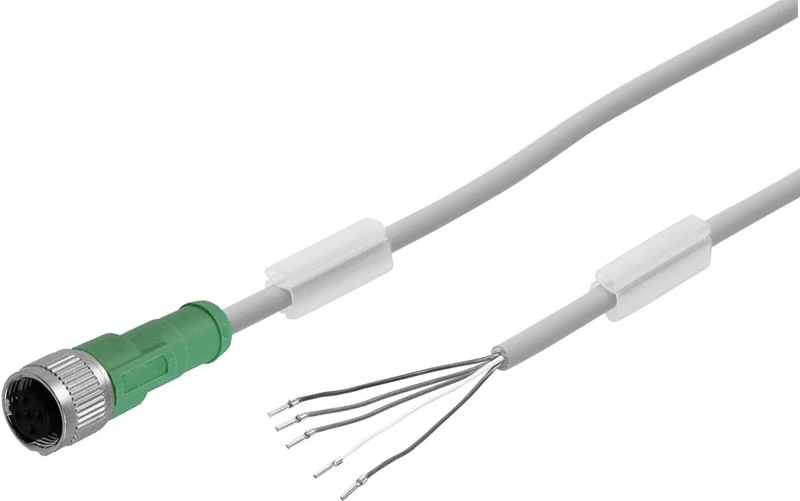

Connecting cable, NEBS-M12G5-ES-15-LE5
SKU: 8097576
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Limit switch box SRBG
• Accessories, Connecting cable
• Cable length 15 m
• Cable designation With 2x inscription label holders
• Product weight 828 g
• Electrical connection 1, function Field device side
• Electrical connection 1, design Round
• Electrical connection 1, connection type Socket
• Electrical connection 1, cable outlet Straight
• Electrical connection 1, connector system M12x1, A-coded to EN 61076-2-101
• Electrical connection 2, function Controller side
• Electrical connection 2, connection type Cable
• Electrical connection 2, connector system Open end
• Electrical connection 2, number of connections/cores 5
• Electrical connection 2, used connections/cores 5
Buy currently uses Select Automation shop pricing and checkout.
Connecting cable NEBS
• For connection with rectangular design L1, grid dimension 5.8 mm
• For thread M12x1 A-coded according to EN 61076-2-101
• For thread M16x0.75
• Connecting cable for pressure sensor SPAN
• Degree of protection IP40, IP65, IP67, IP69K, when mounted
• Cable length 0.5 ... 10 m
• With PVC or PUR cable
• Ambient temperature -40 ... +70 °C
