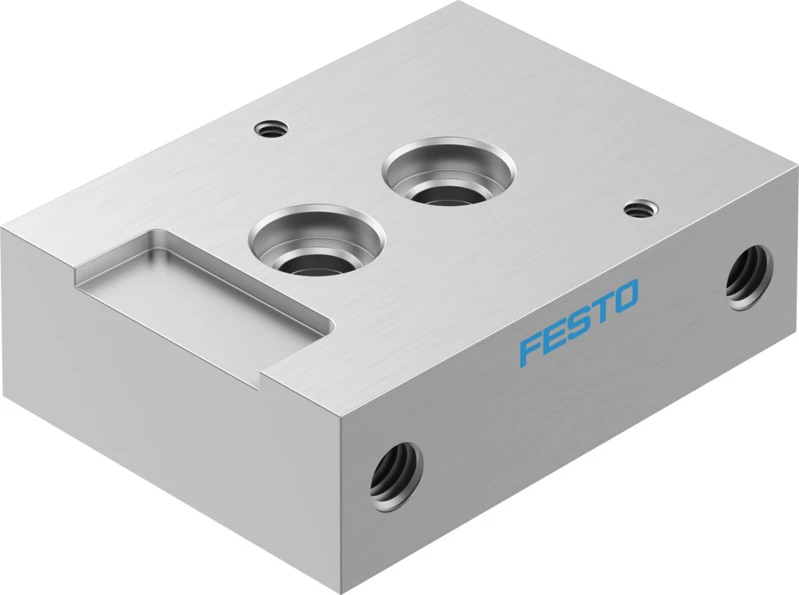

Sub-base, VABS-P16-10S-M5

Specifications • Piezo valve VEAE • Accessories, Sub-base, for 2/2-way valve • Construction width 26 mm • Mounting position optional • Special characteristics Oxygen-compatible to DIN EN 1797 • Max. number of valve positions 1 • Operating pressure 0 bar ... 7 bar • Operating medium Compressed air to ISO 8573-1:2010 [6:3:4], Inert gases, Air, Oxygen, Nitrogen • Note on operating and pilot medium Lubricated operation not possible, Maximum particle size 5 µm • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L
