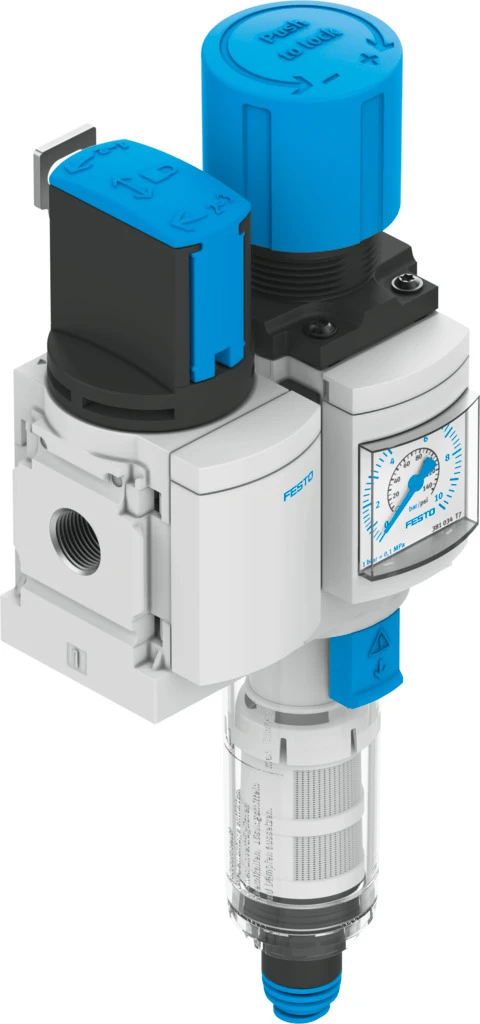

Service unit, MS4-EM1FR-1/4-D6-E-P-VC-AG-BAR-WPE-B

Specifications • Service unit MS-EM1FR • Size 4 • Series MS • Mounting position Vertical +/-5° • Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge • Operating pressure 0.1 MPa ... 1 MPa • Operating pressure 1 bar ... 10 bar • Operating pressure 14.5 psi ... 145 psi • Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi) 1400 l/min • Standard nominal flow rate (standardised to DIN 1343) 1700 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Compatibility with ester oil not guaranteed • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L
