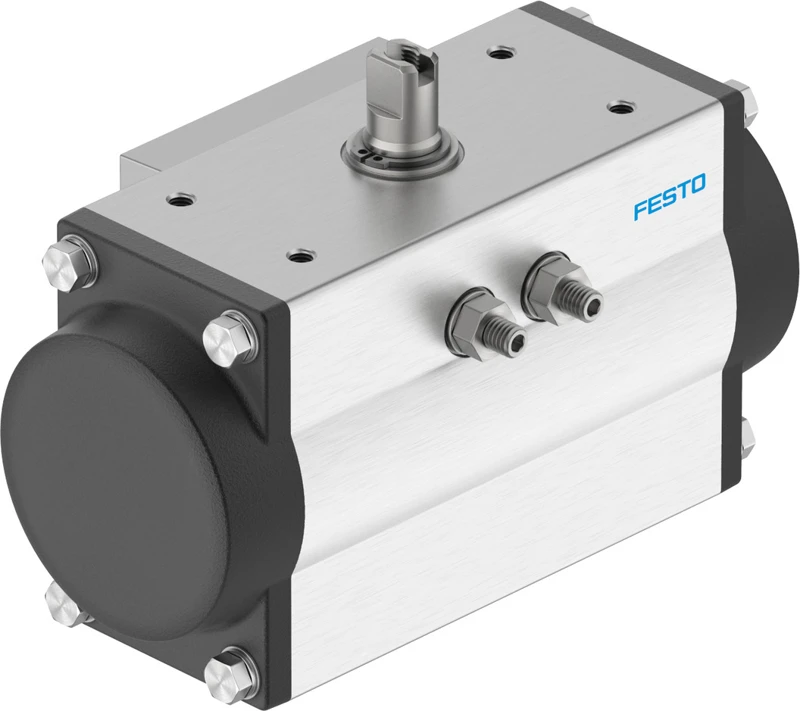

Semi-rotary drive, DFPD-40-RP-90-RS35-F05-R3-C
SKU: 8102802
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Quarter turn actuators DFPD, chemical actuators, single-acting
• Pneumatic connection G1/8
• Torque at nominal operating pressure and 0° swivel angle 16.3 Nm
• Swivel angle 90 deg
• Flange hole pattern F05
• Shaft connection T14
• Size of valve actuator 40
• End-position adjustment range at 0° -5 deg ... 5 deg
• End-position adjustment range at nominal swivel angle -5 deg ... 5 deg
• Shaft connection depth 16 mm
• Fitting connection conforms to standard ISO 5211
• Mounting position optional
• Mode of operation Single-acting
• Design Rack and pinion
Buy currently uses Select Automation shop pricing and checkout.
Quarter turn actuator DFPD
• The DFPD series features a rack and pinion combination with a constant torque characteristic across the entire swivel range.
• The quarter turn actuators DFPD are perfect for automating your butterfly valves, ball valves and dampers.
• Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version
• Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting
• Process valve connection to ISO 5211
• Mounting hole pattern to VDI/VDE 3845
• Sturdy, non-slip and easy-to-clean aluminium housing
• Long service life, low wear
• Increased corrosion protection
