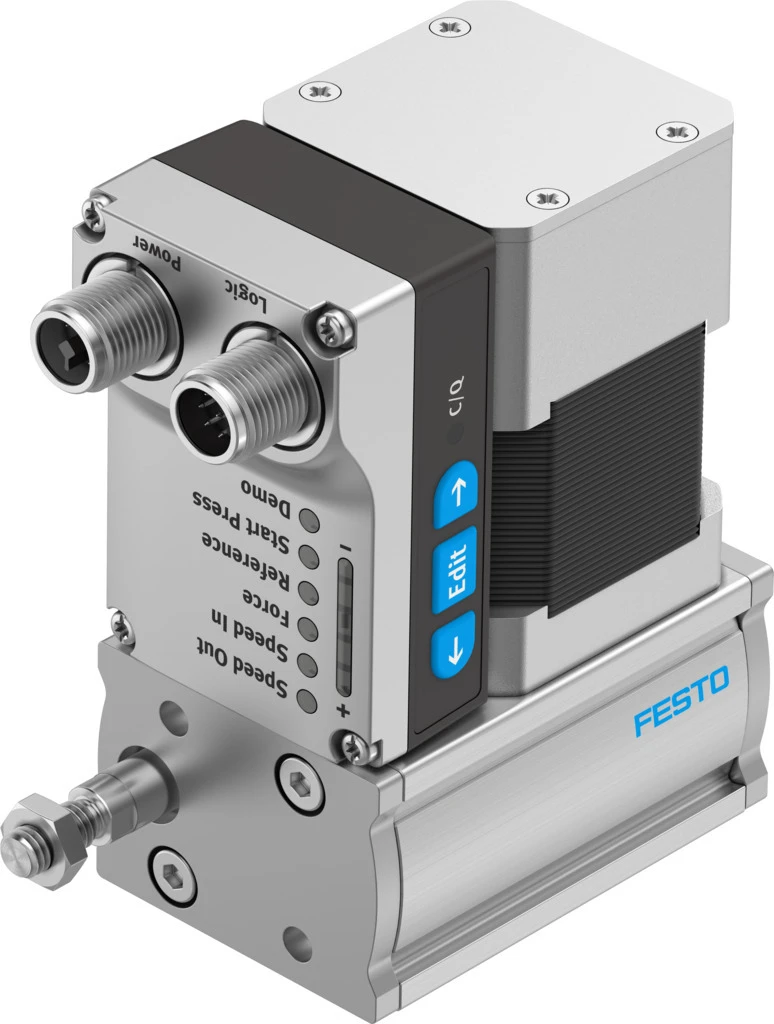

Electric cylinder unit, EPCE-TB-45-
SKU: 8103354
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinder unit EPCE-TB
• Effective diameter of drive pinion 10.18 mm
• Size 45
• Stroke 10 mm ... 50 mm
• Stroke reserve 0 mm
• Piston rod thread M6
• Toothed-belt stretch 0.31 %
• Toothed-belt pitch 2 mm
• Mounting position optional
• Piston-rod end Male thread
• Type of motor Stepper motor
• Position detection Motor encoder
• Design Electric cylinder, With toothed belt, With integrated drive
• Max. feed force Fx 85 N
• Repetition accuracy ±0.05 mm
Buy currently uses Select Automation shop pricing and checkout.
Electric cylinder unit EPCE-TB
• Highly compact, dynamic, and cost-effective electric cylinder unit with short strokes and cycle times with minimal zero stroke for extremely simple moving and positioning tasks.
• Ideal for compact and fast movement in test and inspection equipment, labelling, simple centring tasks and workpiece alignment.
• As part of the Simplified Motion Series, EPCE is easy to configure and put into operation straightaway without any software.
• Complete solution consisting of drive mechanics, motor and servo drive
• Innovative interpretation of toothed belt technology for maximum dynamic response and minimal positioning times
• Perfect for use in applications where space is critical thanks to minimal zero stroke and extremely compact design
• Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation
• Two control options integrated as standard: digital I/O and IO-Link
