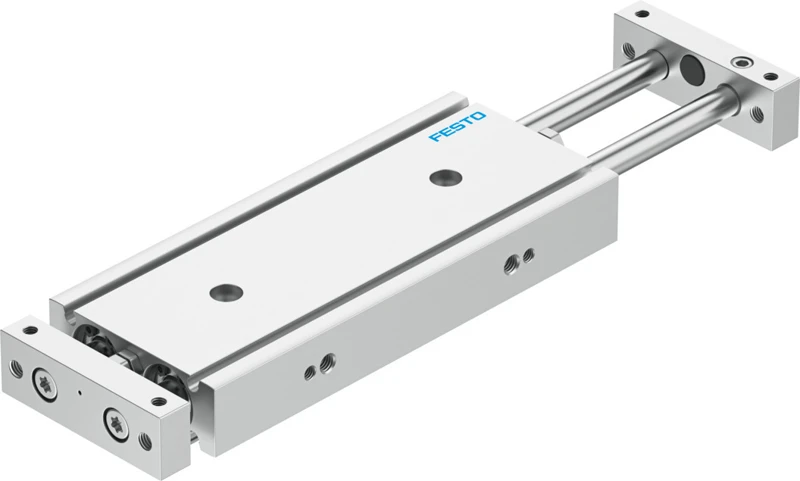

Twin cylinder, DGTZ-GF-16-50-J-T-P-A

Specifications • Twin-piston drives DGTZ, Two end plates and through piston rod • Stroke 50 mm • Adjustable end-position range/length 10 mm • Piston diameter 16 mm • Operating mode, drive unit Two yokes • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Guide Plain-bearing guide • Design Guidance • Position detection Via proximity switch • Symbol 00991243 • Operating pressure 0.12 MPa ... 0.8 MPa • Operating pressure 1.2 bar ... 8 bar • Mode of operation Double-acting • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 181 N
