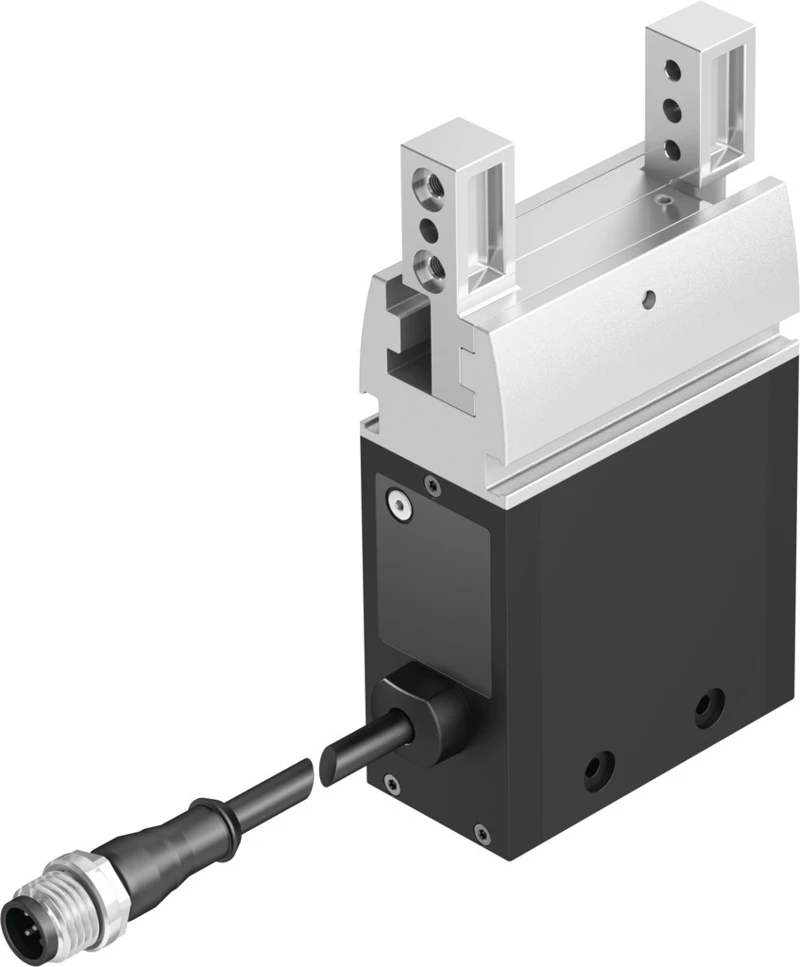

Parallel gripper, EHPS-20-A-LK
SKU: 8103810
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel grippers EHPS, electric
• Size 20
• Stroke per gripper jaws 13 mm
• Max. replacement accuracy ≤0.2 mm
• Max. angular gripper jaw backlash ax, ay 0.3 deg
• Max. gripper jaw backlash Sz 0.05 mm
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.01 mm
• Number of gripper jaws 2
• Drive system Electrical
• Mounting position optional
• Gripper function Parallel
• Design Worm gear unit, T-shape, Rack and pinion,Electric gripper
• Position detection With Hall sensor - With integrated displacement encoder - Via IO-Link interface
• Electrical connection 5-pin - Cable with plug - M12x1
• Max. torque at gripper Mx static 13 Nm
Buy currently uses Select Automation shop pricing and checkout.
Parallel gripper EHPS
• The electric gripper EHPS can be used without an external controller. Low noise level.
• Electric version of the pneumatically actuated parallel gripper DHPS
• Ideal for use as a front-end actuator thanks to its low dead weight
• Controller-free actuation using digital signals
• Gripping force (4 settings) adjustable via ratchet switch or via IO-Link® interface
• RA1 version with robot connection, enables fast integration in lightweight robot environments
