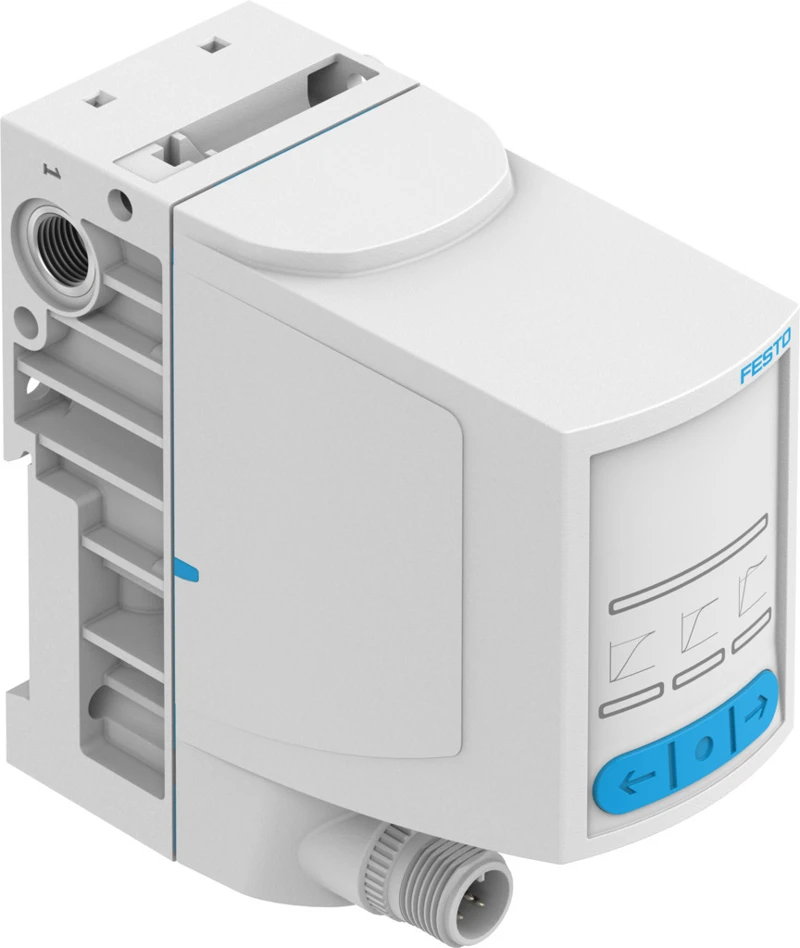

Proportional-pressure regulator, VPPI-5L-3-G18-0L6H-V1-S1
SKU: 8104664
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional pressure regulator VPPI
• Valve function 3-way proportional pressure regulator
• Pneumatic connection, port 1 G1/8
• Pressure regulation range 0 bar - 6 bar
• Operating pressure 6 bar - 8 bar
• Operational voltage range DC 21.6 V - 27.6 V
• Nominal size, supply 5 mm
• Nominal size, exhaust 5 mm
• Type of actuation Electric
• Sealing principle Soft
• Total leakage 5 l/h
• Flow direction Non-reversible
• Mounting position optional
• Design Poppet valve with spring return
• Short circuit current rating For all electrical connections
• Max. cable length 30 m
Buy currently uses Select Automation shop pricing and checkout.
Proportional pressure regulator VPPI
• The directly actuated valve with integrated pressure compensation provides dynamic and precise regulation even with large nominal widths.
• An efficient moving-coil drive makes the VPPI highly dynamic, while a lower-order position controller ensures excellent stability.
• The full graphic display offers multiple setting options.
• Select between three predefined and one customer-specific controller preset
• With or without display
• Low-noise, flexible and highly dynamic
• Precise and stable changeover, rapid switching of setpoint by high-performance moving coil actuator
• Control via analogue current or voltage signal, digital pattern for adjustable setpoint values or pulse-width modulation signal
