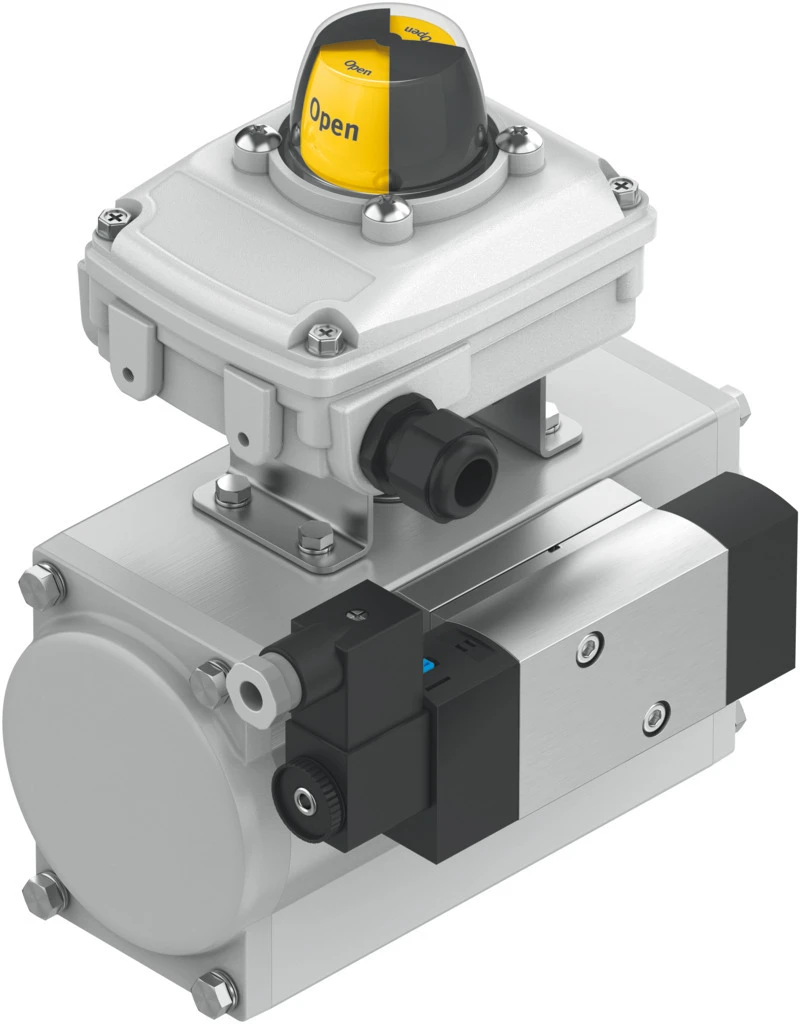

Semi-rotary drive unit, KDFP-DFPD

Specifications • Quarter turn actuator unit KDFP • Design Rack and pinion • Mode of operation Double-acting, Single-acting • Size of valve actuator 10, 20, 40, 80, 120, 160, 240, 300, 480, 700, 900, 1200, 2300 • Flange hole pattern F03, F04, F05, F07, F10, F12, F14, F16 • Swivel angle 90 deg • Ambient temperature -50 °C ... 150 °C • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Operating pressure 29 psi ... 116 psi • LABS (PWIS) conformity VDMA24364 zone III • Product weight 1000 g ... 100000 g • Note on materials RoHS-compliant
