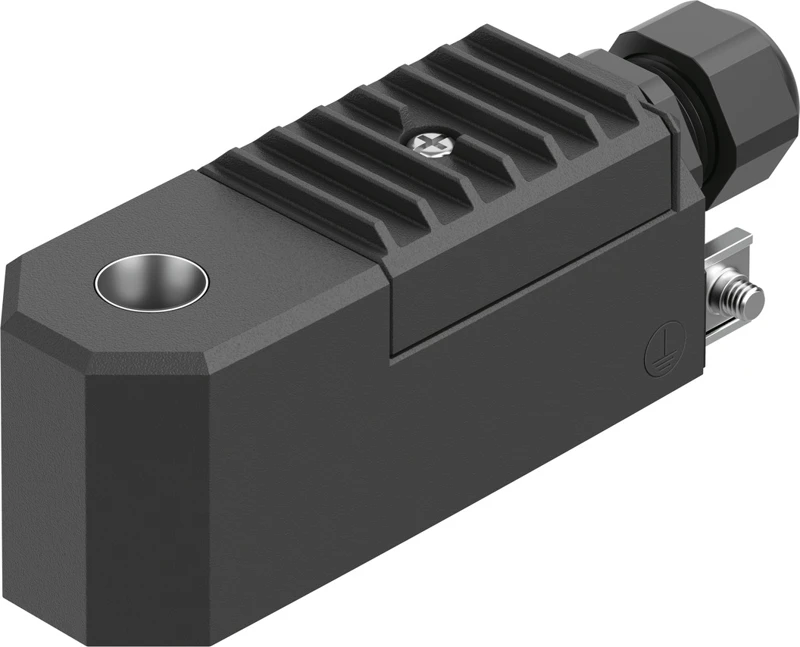

Solenoid coil, VACC-S13-18-K4-2U-EX4ME
SKU: 8109397
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid coils VACC-S13-18-K4-...-EX4ME, with explosion protection
• Type of actuation Electric
• Mounting position optional
• Switching position indicator no
• Duty cycle 100%
• Insulation material class H
• Characteristic coil data 110 V DC: 1.8 W, 110 V AC: 40/65 Hz, power 1.8 VA
• Permissible voltage fluctuations -15%/+10%
• CE mark (see declaration of conformity) To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive
• CE marking (see declaration of conformity) nach UK EX Vorschriften (UK-X), nach UK RoHS Vorschriften (UK-R)
Buy currently uses Select Automation shop pricing and checkout.
Solenoid coils VACC-S13-18-K4-...-EX4ME, with explosion protection
• Compatible with solenoid valves VOFC, VOFD, with 13 mm armature tube
• Selected types in accordance with ATEX directive for potentially explosive atmospheres
• Electrical connection Terminal box, cable entry thread M20x1.5
• Degree of protection IP65
• With encapsulation, enhanced safety
• Variant with internal fuse
