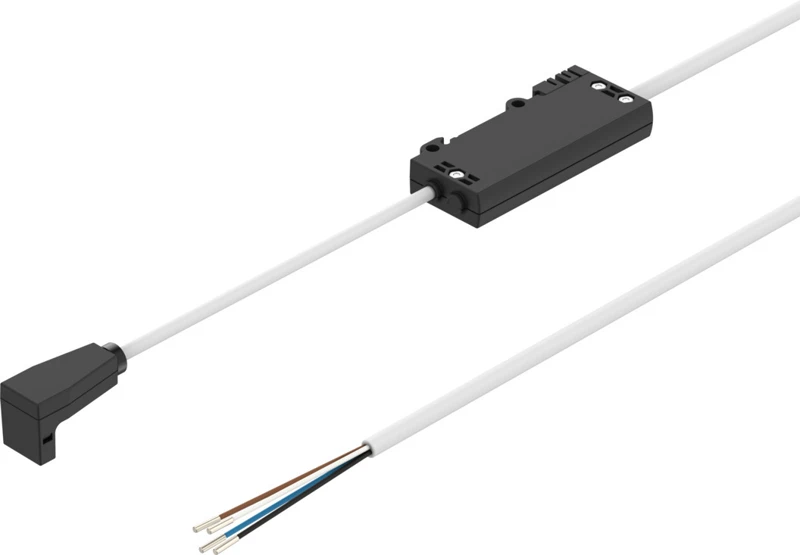

Electronics module, VAVE-P17-TP-5YL1-P

Specifications • Electronics modules VAVE • Reverse polarity protection For operating voltage • Additional functions Protective circuit • Operational voltage range DC 12 V ... 24 V • Input resistance setpoint input 10 kOhm • Adjustable output voltage 0 V ... 310 V • Power consumption at 24VDC 1.2 W • Max. output current 5 mA • Nominal operating voltage DC 12 V ... 24 V • Voltage external setpoint input 0 V ... 10 V • Approval RCM trademark • KC mark KC-EMV • CE mark To EU EMC Directive • CE marking To UK instructions for EMC • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C
