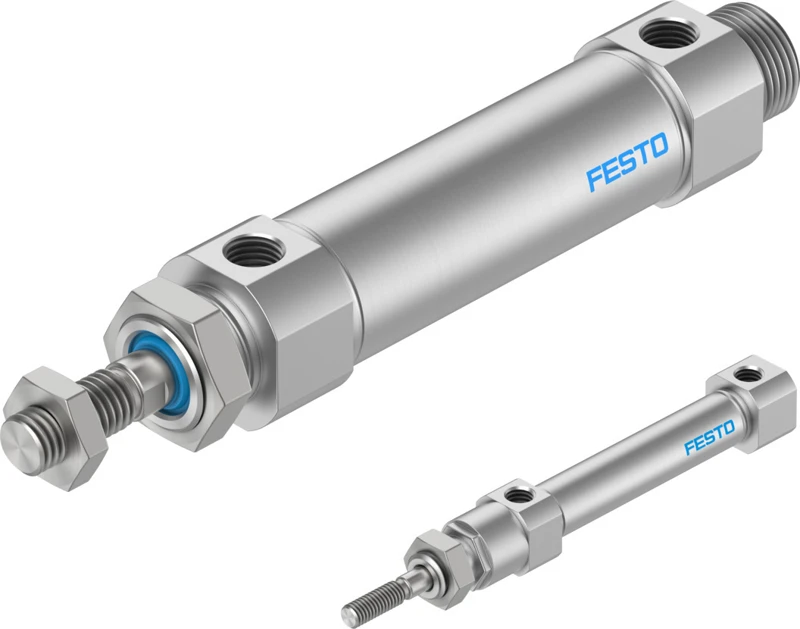

Round cylinder, DSNU-S-12- -
SKU: 8112003
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Round cylinder DSNU-S
• Stroke 1 mm ... 150 mm
• Piston diameter 12 mm
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Design Piston, Piston rod, Cylinder barrel
• Position detection Via proximity switch
• Symbol 00991217
• Operating pressure 0.15 MPa ... 1 MPa
• Operating pressure 1.5 bar ... 10 bar
• Mode of operation Double-acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.
Round cylinder DSNU-S
• Slimmer and shorter than ever before. Ideal for tight installation spaces.
• Extremely sturdy thanks to its resilient materials.
• Short variant of ISO cylinder DSNU
• Quick and easy installation, even in tight spaces
• Light weight
• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• Piston rod with male thread
• For position sensing
• Variants recommended for production systems for manufacturing lithium-ion batteries
• Sustainable in production thanks to reduced use of materials
