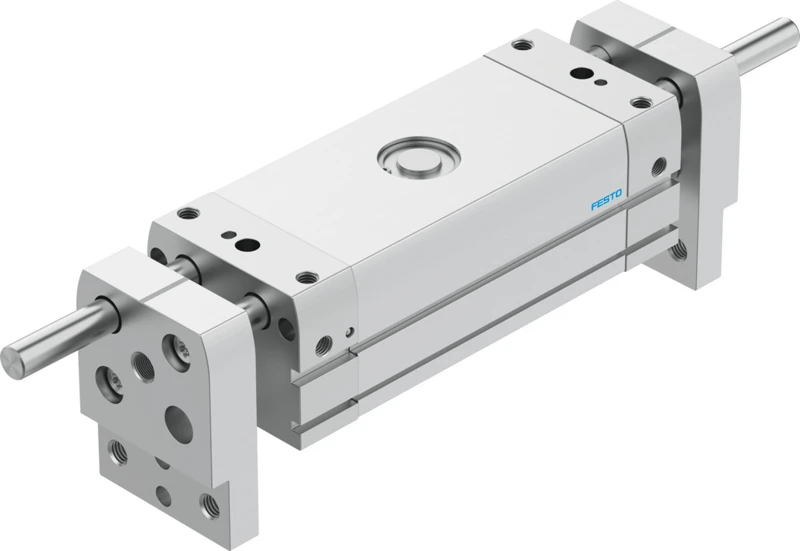

Parallel gripper, DHPL-40-200-P-A
SKU: 8112226
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel grippers DHPL
• Size 40
• Total stroke 200 mm
• Stroke per gripper jaws 100 mm
• Max. replacement accuracy ≤0.2 mm
• Max. angular gripper jaw backlash ax, ay ≤0.1 deg
• Max. gripper jaw backlash Sz ≤0.065 mm
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.03 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Design Rack and pinion
• Position detection Via proximity switch
• Pneumatic connection G1/8
• Operating pressure 0.15 MPa - 0.8 MPa
Buy currently uses Select Automation shop pricing and checkout.
Parallel grippers DHPL
• When bigger objects need to be gripped and lifted, bigger openings and clamping distances are required.
• The new long-stroke gripper DHPL does this for both internal and external gripping.
• As well as being very precise, it is also amazingly light.
• Ideal for stacking boxes, gripping plates and moulded parts, or holding bags open.
• High torque resistance due to guided gripper jaw
• Compact and sturdy design
• Ideal for gripping larger parts
• Double-acting piston drive
• Suitable for external and internal gripping
• Mounting: direct fastening via thread, with through-hole
• For position sensing with proximity sensor for T-slot and for C-slot
• Sustainable in production thanks to reduced use of materials
