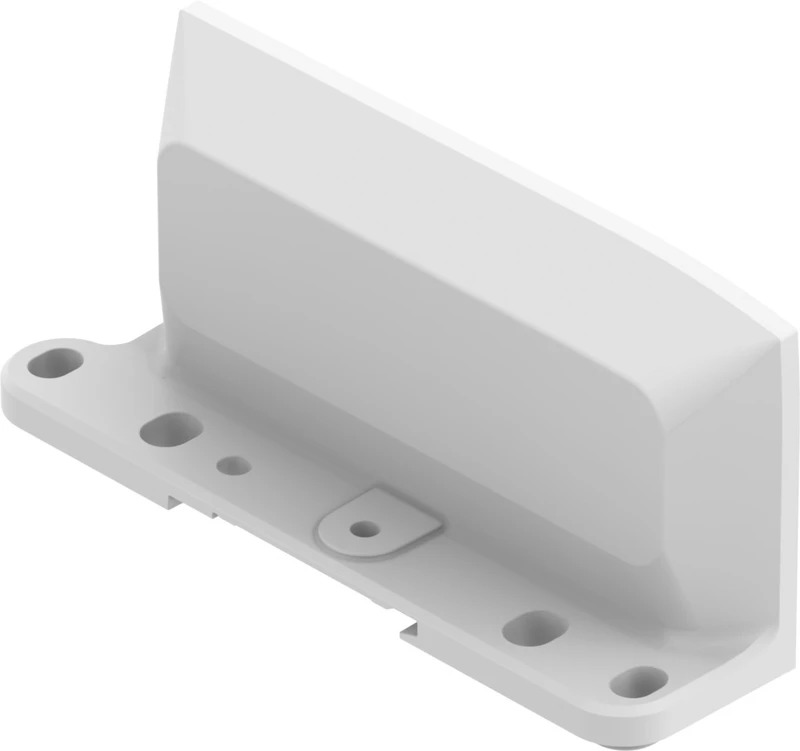

End plate, CPX-AP-A-EPR

Specifications • Automation system CPX-AP-A • End plate • Dimensions (W x L x H) (installation dimensions), 30.4 mm x 117.2 mm x 53.6 mm • Grid dimension 50.1 mm • Type of mounting Direct mounting via through-hole, On H-rail via accessories, Via through-hole for M5 screw, Via through-hole for M6 screw • Product weight 116 g • Mounting position Any, on H-rail: horizontal • Ambient temperature -20 °C ... 50 °C • Note on ambient temperature Observe ambient temperature derating according to IEC 61131-2:2017 • Storage temperature -20 °C ... 70 °C • Relative air humidity 5 - 95%, Non-condensing • Nominal altitude of use 79.5 kPa) • Max. installation height 3500 m
