Distributor, VTOI-V8-30D3-U14-08-V-S015-1
SKU: 8114037
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Dispense head VTOI
• Valve function 2/2-way, closed, monostable
• Operating pressure 0 MPa ... 0.1 MPa
• Operating pressure 0 bar ... 1 bar
• Operating pressure 0 psi ... 14.5 psi
• Internal volume 10 µl fluid space valve, 178 µl distributor block with valve, needle and fittings
• Nominal size 0.8 mm
• Nominal width of dosing needle 0.3 mm
• Length of dosing needle 30 mm
• Grid dimension 9 mm
• Sealing principle Soft
• Mounting position Vertical
• Type of reset Mechanical spring
• Type of piloting Direct
• Suitability for vacuum no
Buy currently uses Select Automation shop pricing and checkout.

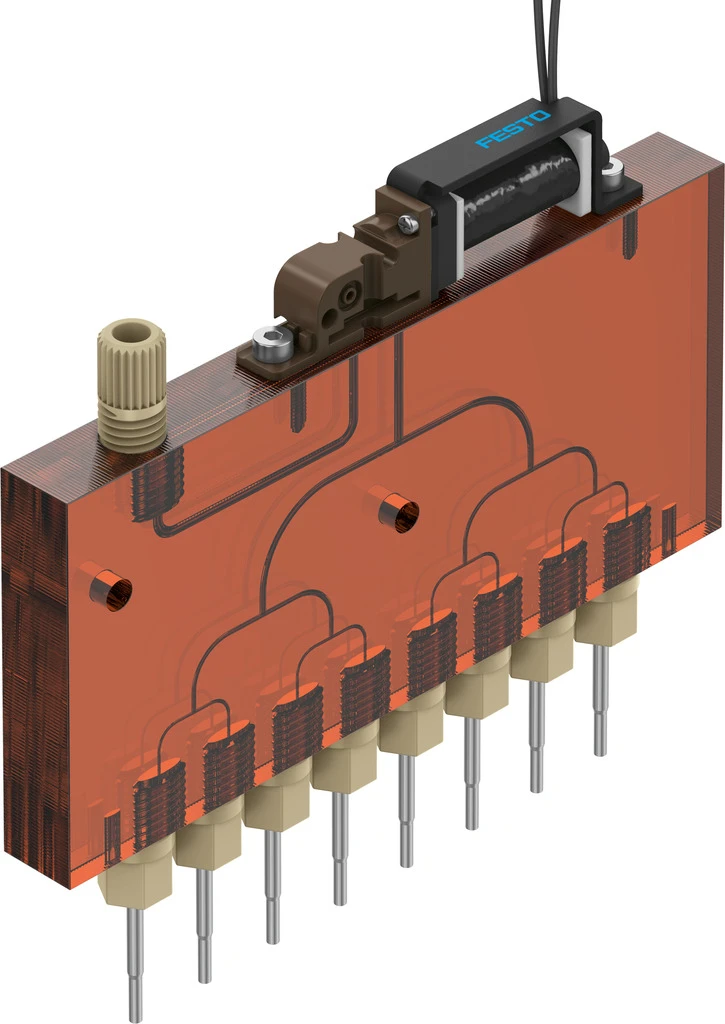

Dispense head VTOI
• Thanks to a grid dimension of 9 mm and a valve for 8 outputs, the VTOI is an easy-to-control 8-channel dispense head for microwell plates.
• VTOI makes it possible to dispense and aspirate fluids in the lowest µl range.
• One valve controller for distributing to 8 dispensing channels
• Grid dimension 9 mm – ideal for microwell plates
• Simple design with side-by-side mounting for increased throughput
• Only a few components are needed to form a complete system
• Suitable for aggressive liquids
