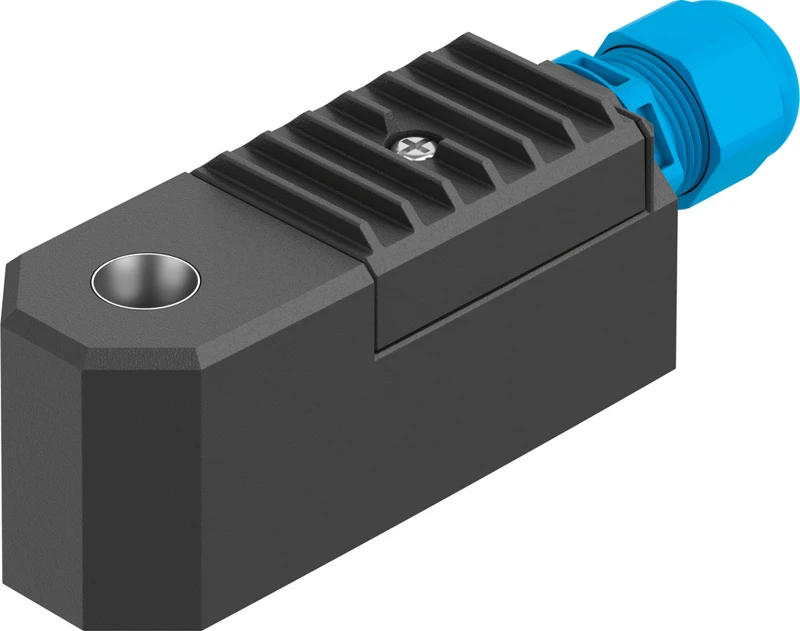

Solenoid coil, VACC-S13-11-K4-1-KS4A

Specifications • Solenoid coils VACC-S13-11 • Terminal box, cable entry thread M20 x 1.5 • Type of actuation Electric • Mounting position optional • Switching position indicator no • Duty cycle 100% • Required current consumption 0.016 A • Insulation material class H • Max. input power Pi 1.2 W • Max. input voltage Ui 32 V • Max. input current Ii 0.2 A • Characteristic coil data 14-32 V DC: 0.22 - 1.1 W • Effective internal capacitance Ci Negligibly low • Effective internal inductivity Li Negligibly low • Permissible voltage fluctuations -15%/+10% • CE mark (see declaration of conformity) To EU EMC Directive, To EU Explosion Protection Directive (ATEX) • Explosion protection certification outside the EU EPL Db (KR), EPL Gb (KR) • Explosion protection Zone 1 (ATEX), Zone 1 (KR), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (KR), Zone 22 (ATEX) • Certificate issuing authority 21-AV4BO-0280X, 22-AV4BO-0052X • ATEX category gas II 2G • ATEX category dust II 2D
