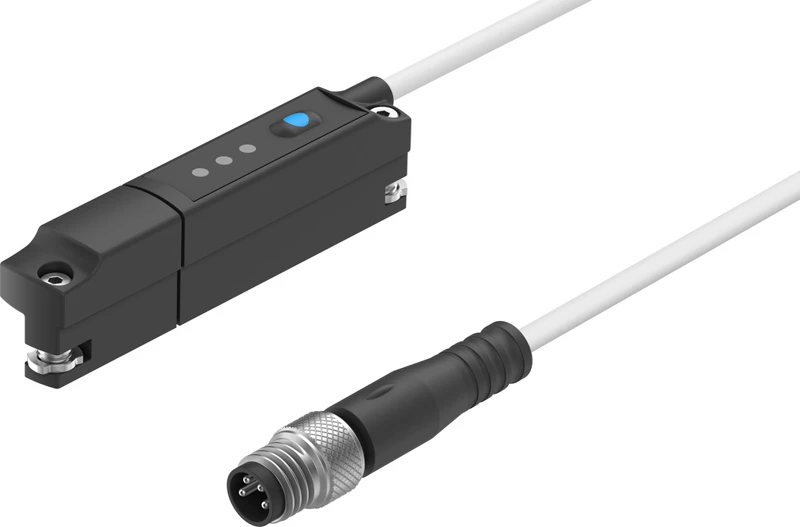

Standards-based cylinders DSBC, Accessories, Position transmitter, SDAT-MHS-M50-1L-SV-E-0.3-M8
SKU: 8115394
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Position transmitter
• Design For T-slot
• Symbol 00997376
• Approval RCM trademark, c UL us listed (OL)
• CE mark (see declaration of conformity) To EU EMC Directive
• CE marking (see declaration of conformity) To UK instructions for EMC
• Note on materials RoHS-compliant, Free of halogen
• Instructions on use https://www.festo.com/Drive-Sensor-Overview
• Measured variable Position
• Measuring principle Magnetic Hall
• Sensing range 0 µm ... 50000 µm
• Ambient temperature -25 °C ... 70 °C
Buy currently uses Select Automation shop pricing and checkout.
Position sensors SDAT-MHS
• Design For T-slot
• Position measuring range 0 ... 160 mm
• Analogue output 4 ... 20 mA
• Electrical connection 4-pin, cable with plug, M8, rotatable thread
• Measuring principle: magnetic Hall
• Insertable in the slot from above, secured with screw
• Suitable for use with energy chain and robot lines
• LED status indications
• Cable length 0.3 m
• Programmable IO-Link/switching output
