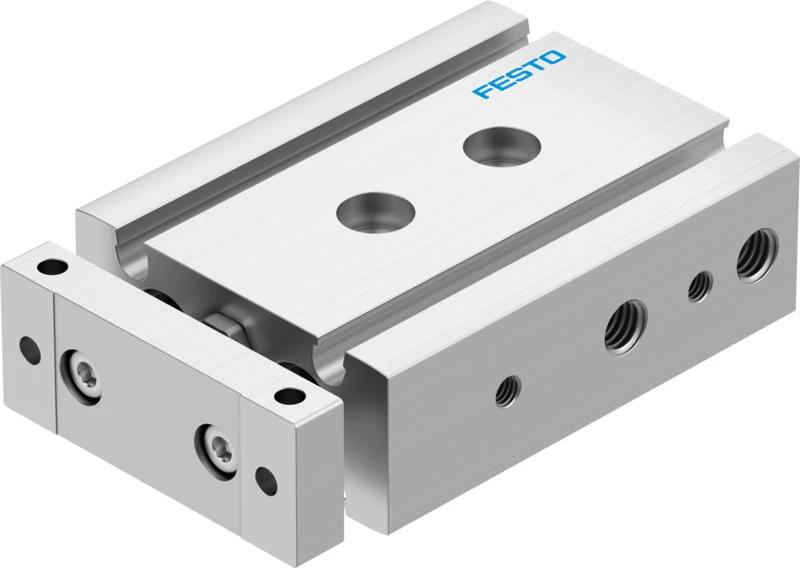

Twin cylinder, DGTZ-GF-6-...-P-A

Specifications • Twin-piston drives DGTZ, One end plate • Stroke 51 mm ... 60 mm • Adjustable end-position range/length 10 mm • Piston diameter 6 mm • Operating mode, drive unit Yoke • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Guide Plain-bearing guide • Design Guidance • Position detection Via proximity switch • Symbol 00991249 • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Mode of operation Double-acting • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 34 N
