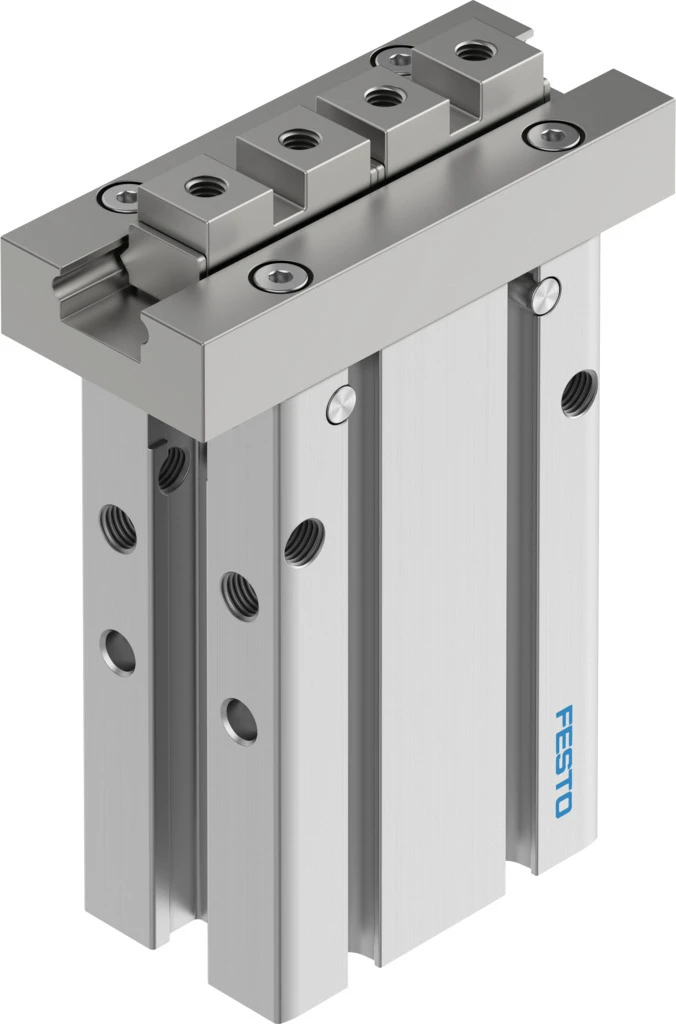

Parallel gripper, DHPC-L-16-A-NC-S-2
SKU: 8116814
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel grippers DHPC
• Size 16
• Stroke per gripper jaws 6 mm
• Max. replacement accuracy 0.2 mm
• Max. angular gripper jaw backlash ax, ay 0 deg
• Max. gripper jaw backlash Sz 0 mm
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.02 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Mounting position optional
• Position detection Via proximity switch
• Max. force on gripper jaw Fz static 84 N
Buy currently uses Select Automation shop pricing and checkout.
Parallel gripper DHPC
• The most compact parallel gripper on the market with impressive gripping force and gripping accuracy available in numerous variants for a wide range of requirements and applications.
• Resilient and precise ball guide
• High gripping force and compact size
• Max. repetition accuracy
• Can be used as a double-acting or single-acting gripper
• Single-acting variant or with gripping force retention normally open (NO) or normally closed (NC)
• Suitable for external and internal gripping
• Wide variety of mounting and attachment options
• Sustainable in production thanks to reduced use of materials
