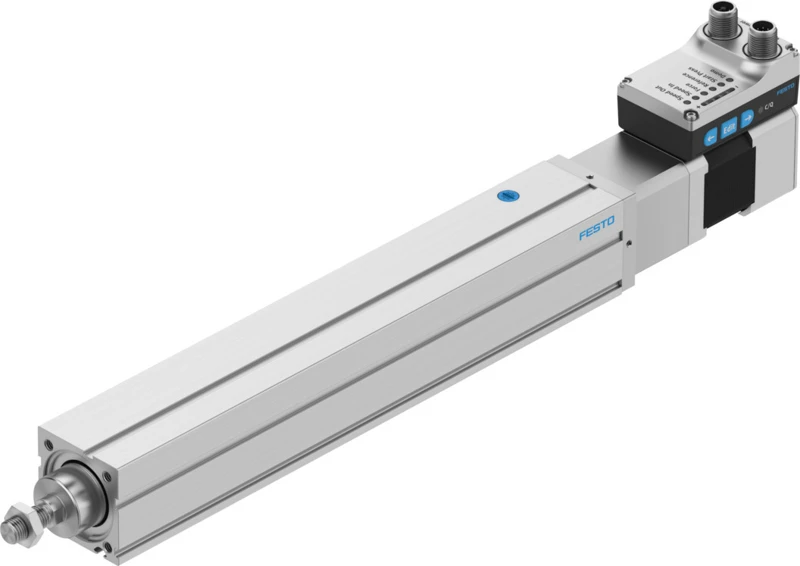

Electric cylinder unit, EPCS-BS-45-200-3P-A-ST-M-H1-PLK-AA
SKU: 8118278
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinder unit EPCS
• Size 45
• Stroke 200 mm
• Stroke reserve 0 mm
• Piston rod thread M10x1.25
• Reversing backlash theoretical 100 µm
• Spindle diameter 10 mm
• Spindle pitch 3 mm/U
• Torsional backlash at piston rod +/- 1 deg
• Mounting position optional
• Piston-rod end Male thread
• Type of motor Stepper motor
• Design Electric cylinder, With ball screw drive, With integrated drive
• Max. feed force Fx 450 N
• Repetition accuracy ±0.02 mm
Buy currently uses Select Automation shop pricing and checkout.
Electric cylinder unit EPCS
• Compact, low-cost electric cylinder unit with quiet and precise ball screw for extremely simple moving and positioning tasks.
• Ideal for precise and fast movement in sorting, distribution or clamping applications.
• As part of the Simplified Motion Series, EPCS is easy to configure and can be commissioned straightaway without software.
• Complete solution consisting of drive mechanics, motor and servo drive
• Precise positioning thanks to smoothly running ball screw drive
• Easy to implement pressing-in and clamping applications for forces up to 900 N
• Two control options integrated as standard: digital I/O and IO-Link
• Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation
