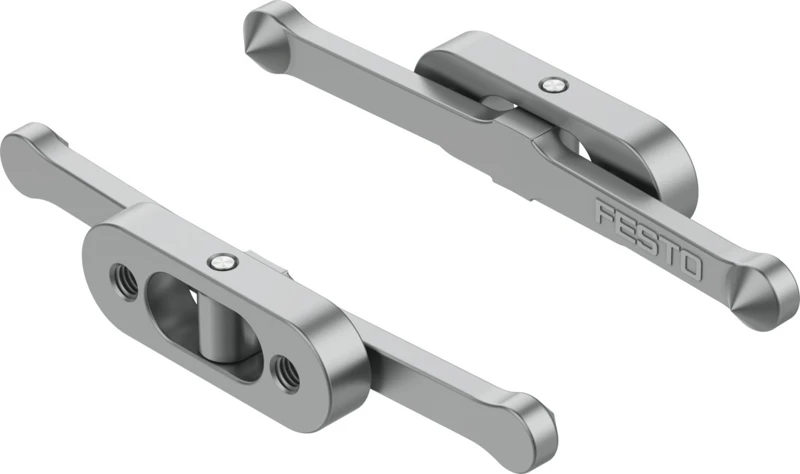

Gripper jaws, DHAS-GG-B18-16-A1

Specifications • Parallel grippers EHPS, electric • Accessories, Gripper jaws DHAS-GG • Size 16 mm • Mounting position optional • Design For microwell plates • Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 • Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -20 °C ... 70 °C • Relative air humidity 0 - 100% • Ambient temperature 0 °C ... 40 °C • Product weight 24.4 g • Type of mounting With female thread M3 • Note on materials RoHS-compliant • Material gripper jaws High-alloy stainless steel • Material cylindrical dowel pin Spring steel
