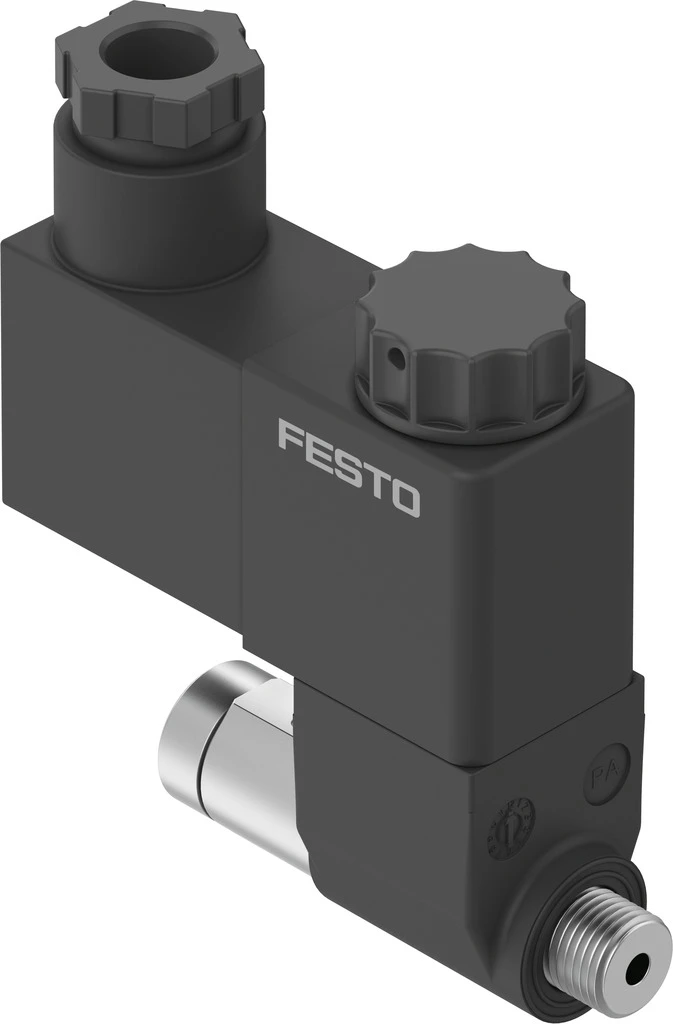

Pilot valve, VOFX-LT-M32C-MY-G18-SG18-1B2

Specifications • Angle seat valves VZXA • Accessories, Pilot valve VOFX • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 22 mm • Standard nominal flow rate (standardised to DIN 1343) 50 l/min • Pneumatic working port G1/8 • Operating voltage 24V DC • Operating pressure -0.9 bar ... 8 bar • Design Directly actuated poppet valve • Type of reset Mechanical spring • Degree of protection IP65 • Nominal size 1.3 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional • Manual override Detenting
