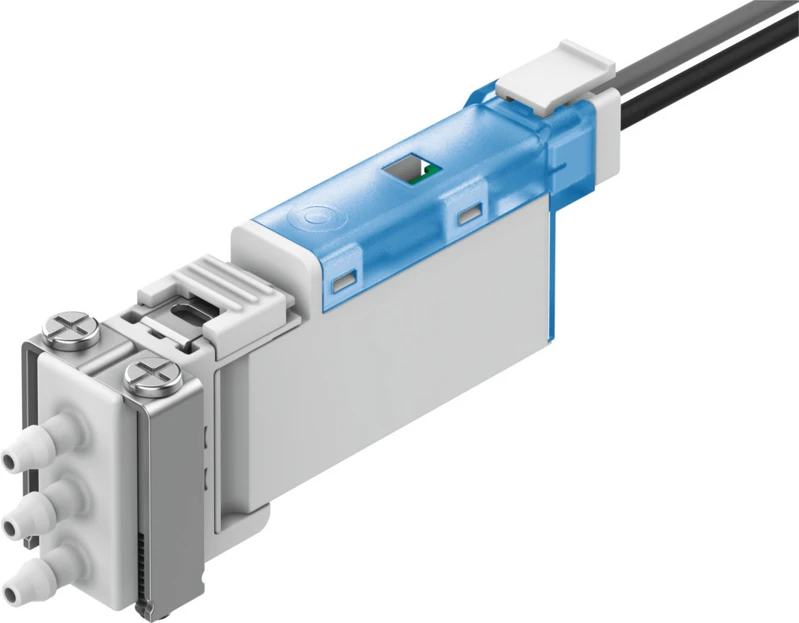

Solenoid valve, VOVK-BT6-M32C-MN-5H5ZP-B3F
SKU: 8122786
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valve VOVK
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Construction width 5.9 mm
• Standard nominal flow rate (standardised to DIN 1343) 5.5 l/min
• Pneumatic working port For tubing I.D. 1.5 mm
• Operating pressure -0.1 MPa ... 0.7 MPa
• Operating pressure -1 bar ... 7 bar
• Operating pressure -14.5 psi ... 100 psi
• Note on operating pressure Operating pressure at port 3: -1 to 0 bar only
• Design Connection orientation forwards, Poppet valve with spring return
• Type of reset Mechanical spring
• Degree of protection IP40
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VOVK
• At a width of 5.9 mm, the miniature valve VOVK is extremely narrow and can be used wherever the MHA1 is too large.
• Depending on the type of connection, up to 20 valves can be connected in a row.
• With a pressure range of up to 7 bar or down to -0.9 bar in vacuum operation, the 3/2-way valve NC VOVK offers very high performance.
• Very narrow: 5.9 mm grid dimension
• Extremely small and lightweight
• Very low power consumption
• Variable connection concepts: flanged connection underneath or at the front, barbed fitting connection at the front
• Ideal for control of small air flows
