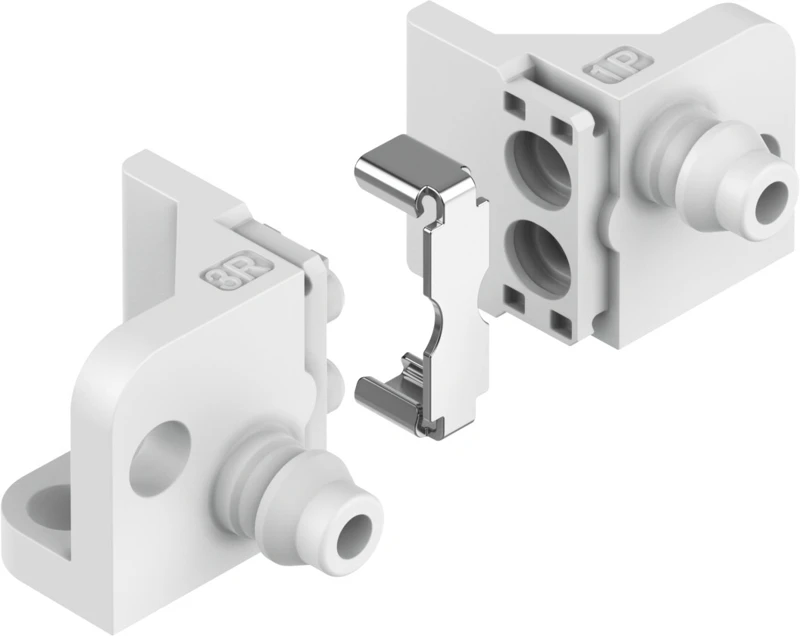

Manifold block-SET, VABS-C12-6-S

Specifications • Solenoid valve VOVK • Accessories, Manifold block-SET • Construction width 13 mm • Mounting position optional • Design Connection direction at side • Max. number of valve positions Versions according to customer specifications possible • Operating pressure -0.1 MPa ... 0.7 MPa • Operating pressure -1 bar ... 7 bar • Operating medium Compressed air to ISO 8573-1:2010 [6:4:1] • Note on operating and pilot medium Maximum particle size 5 µm • LABS (PWIS) conformity VDMA24364 zone III • Ambient temperature 5 °C ... 50 °C • Product weight 3 g • Type of mounting With through-hole
