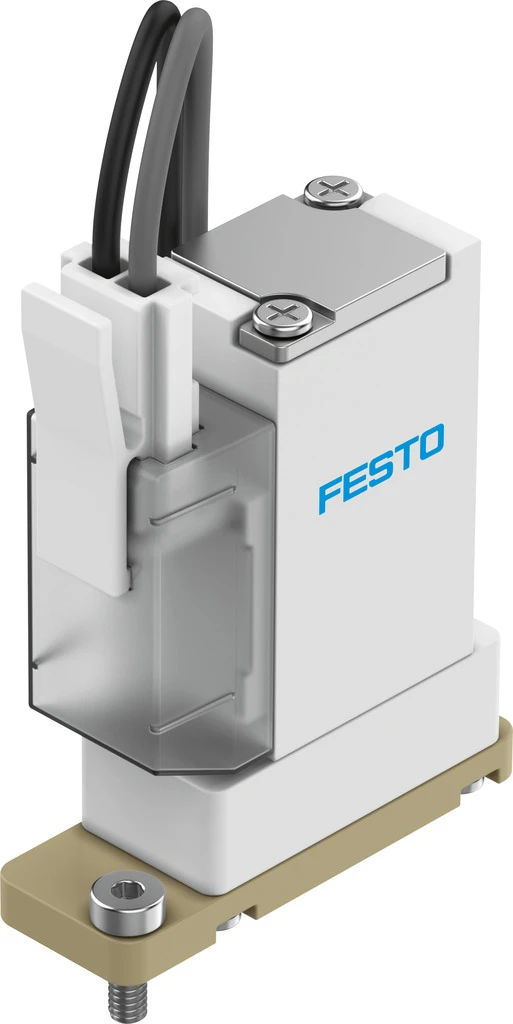

Media separated solenoid valve, VYKB-F10-M22C-16-PF-5HPS
SKU: 8122815
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Media separated solenoid valves VYKB
• Solenoid valve size 10 mm
• Design Electrical connection at top, Rocker valve with diaphragm seal
• Sealing principle Soft
• Material in contact with the medium FFPM, PEEK
• Valve function 2/2-way, closed, monostable
• Nominal size 1.6 mm
• Flow direction Non-reversible
• Type of actuation Electric
• Type of piloting Direct
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Media separated solenoid valve VYKB
• At just 10 / 12 mm wide (NW 1.6 / 2.0 mm), VYKB controls very small volumes of fluid (µl, ml) with high precision in dispensing and flow control applications.
• It is also suitable for aggressive media, thanks to a separating diaphragm made from high-performance polymers.
• Compact width of 10 mm or 12 mm
• Very easy to clean thanks to media separation
• High-quality materials, therefore also suitable for aggressive media
• Very flexible in use thanks to 3/2-way or 2/2-way variants as well as 12 or 24 V DC actuation
• For dosing, aspirating and for continuous flow applications
• Developed according to ISO 13485
• Sustainable operation thanks to efficient control and active air shut-off
