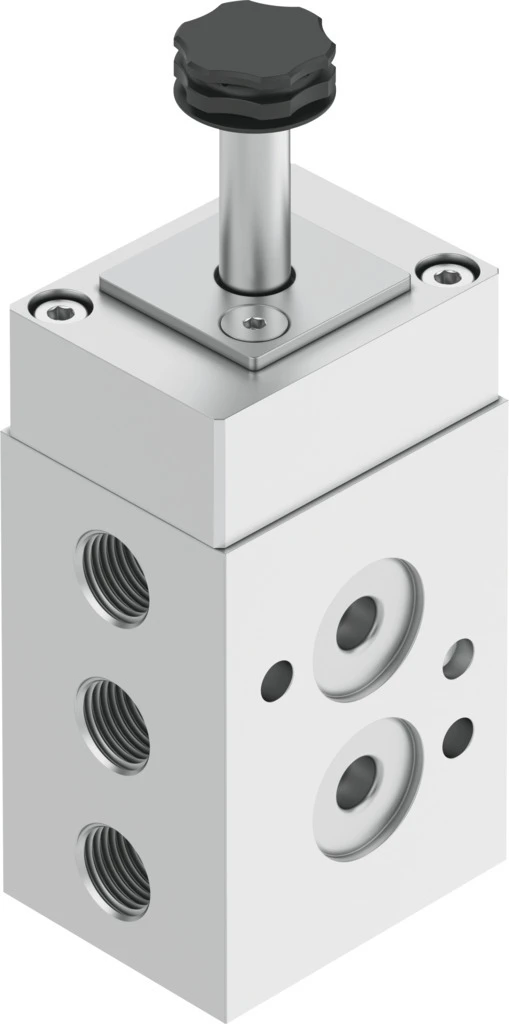

Valve, VOFC-L-M52-M-FN14-FN
SKU: 8122930
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Basic valves VOFC-L
• 5/2-way, single solenoid, 1/4 NPT and NAMUR
• Operating pressure 0.25 MPa ... 0.8 MPa
• Operating pressure 2.5 bar ... 8 bar
• Operating pressure 36.25 psi ... 116 psi
• Degree of protection IP65
• Symbol 00995230
• Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
• Corrosion resistance class CRC 4 - Very high corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Note on materials RoHS-compliant
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VOFC
• Indirectly controlled pilot valve for particularly demanding operating conditions.
• Redundant version for safety systems up to SIL3.
• Suitable for process automation in the chemical and petrochemical industries
• Suitable for outdoor use under harsh ambient conditions
• Especially suitable for quarter turn actuators thanks to NAMUR flange pattern
• Valve can switch between internal and external pilot air
• Variants with safety functions
• Variants to EU Explosion Protection Directive (ATEX)
