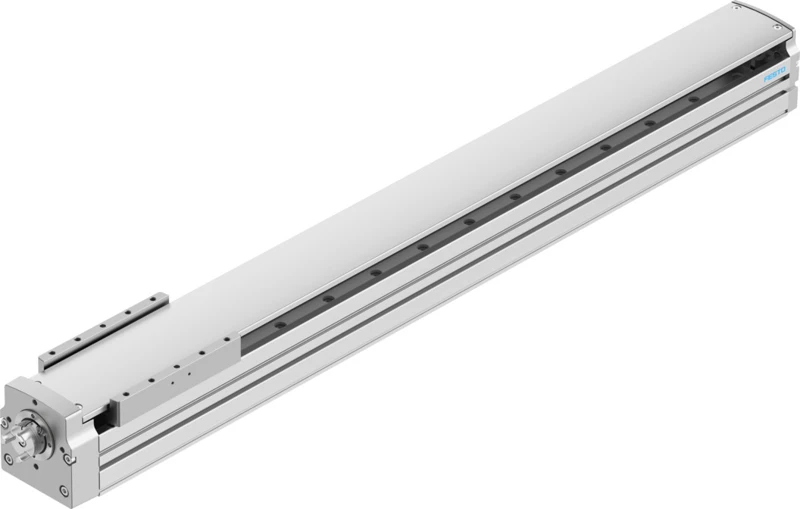

Ball screw axis, ELGT-BS-90-700-10P
SKU: 8124414
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Spindle axes ELGT-BS
• Working stroke 700 mm
• Size 90
• Stroke reserve 0 mm
• Reversing backlash theoretical ≤150 µm
• Spindle diameter 16 mm
• Spindle pitch 10 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw
• Max. feed force Fx 1054 N
• Repetition accuracy ±0.02 mm
Buy currently uses Select Automation shop pricing and checkout.
Ball screw axis ELGT-BS
• Compact and low-cost spindle axis with integrated double guide for 2D and 3D cantilever systems in the electronics industry, with desktop applications as well as in battery production.
• Great resilience and rigidity due to double-acting guide
• Compact design
• With ball screw drive
• Optimal ratio between installation space and working space due to the optimised axis design
• Simple integration of motors with mounting kits
• Optimised for use in the electronics and automotive industry
