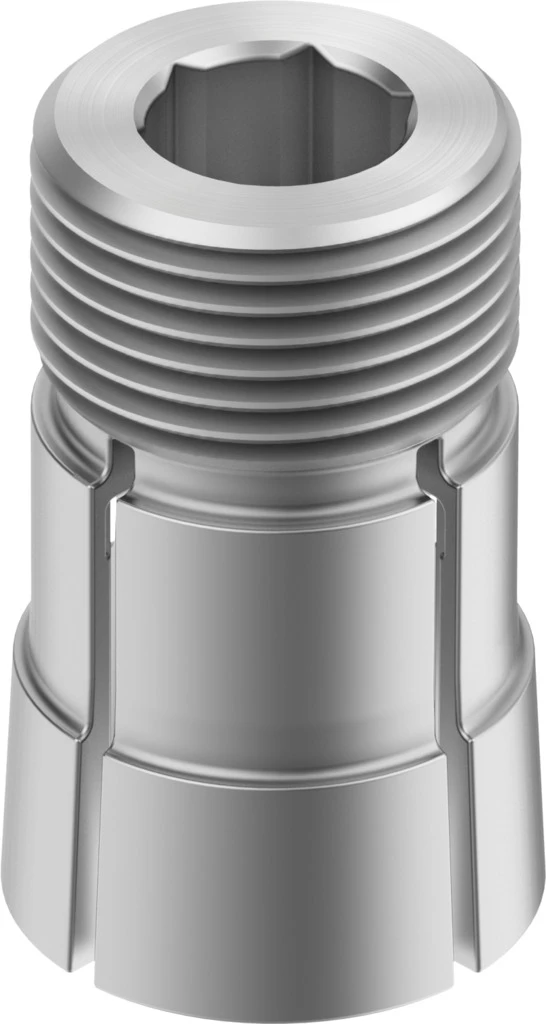

Clamping sleeve, EAMH-60-14-C18.1
SKU: 8125353
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel kits EAMM-U-...-D/S
• Accessories, Clamping sleeve EAMH, without trunnion
• Can only be used in combination with parallel kit EAMM-U-...-D/S
• Size 60
• Mounting position optional
• Max. rotational speed 6000 rpm
• LABS (PWIS) conformity VDMA24364-B2-L
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 1.03 kgmm²
• Product weight 21 g
• Note on materials RoHS-compliant
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Parallel kits EAMM-U-...-D/S
• Accessories, Clamping sleeve EAMH, without trunnion
• Can only be used in combination with parallel kit EAMM-U-...-D/S
• Size 60
• Mounting position optional
• Max. rotational speed 6000 rpm
• LABS (PWIS) conformity VDMA24364-B2-L
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 1.03 kgmm²
• Product weight 21 g
• Note on materials RoHS-compliant
