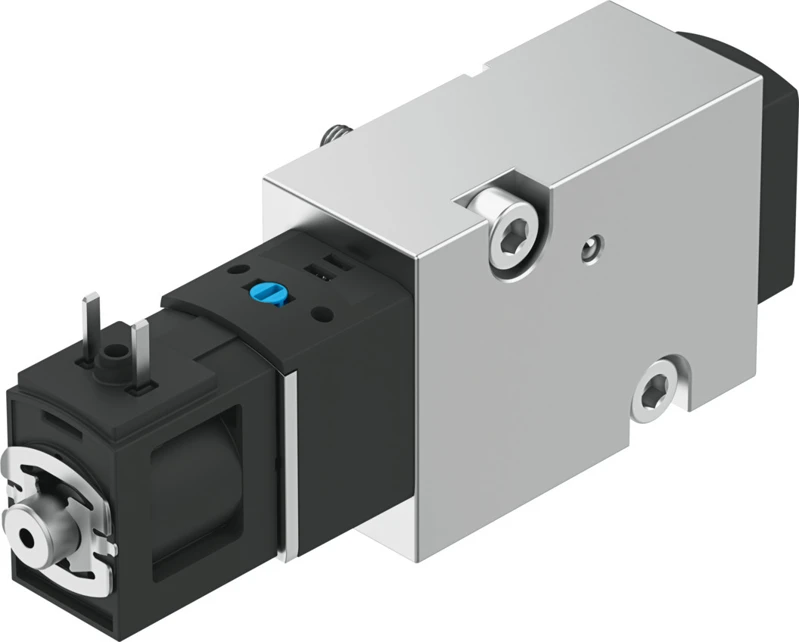

Solenoid valve, VSNC-FKA-M52-RD-G18-1C1-S
SKU: 8128473
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valve VSNC-G1/8
• Valve function 5/2-way, monostable, Connections swapped
• Type of actuation Electric
• Construction width 25.5 mm
• Standard nominal flow rate (standardised to DIN 1343) 400 l/min
• Pneumatic working port NAMUR port pattern
• Operating voltage 24V DC
• Operating pressure 0.25 MPa ... 0.8 MPa
• Operating pressure 2.5 bar ... 8 bar
• Design Piston slide with sealing ring
• Type of reset Mechanical spring, Pneumatic spring
• Degree of protection IP65
• Exhaust-air function With flow control option
• Sealing principle Soft
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VSNC-G1/8
• The NAMUR valve in connection size G1/8 is the perfect complement for the VSNC series.
• The valve is characterised by its compact design with the same well-known performance as the VSNC and an attractive price/performance ratio.
• Namur connection pattern to VDI/VDE 3845
• Compact, cost-effective, powerful
• Especially suitable for rotary actuators DAPS and DFPD with connection pattern according to VDI/VDE 3845
• Extended temperature range
• Electrical connection with plug pattern type form C, according to EN 175301-803
• Solenoid coil 24 V integrated
• Excellent value for money
