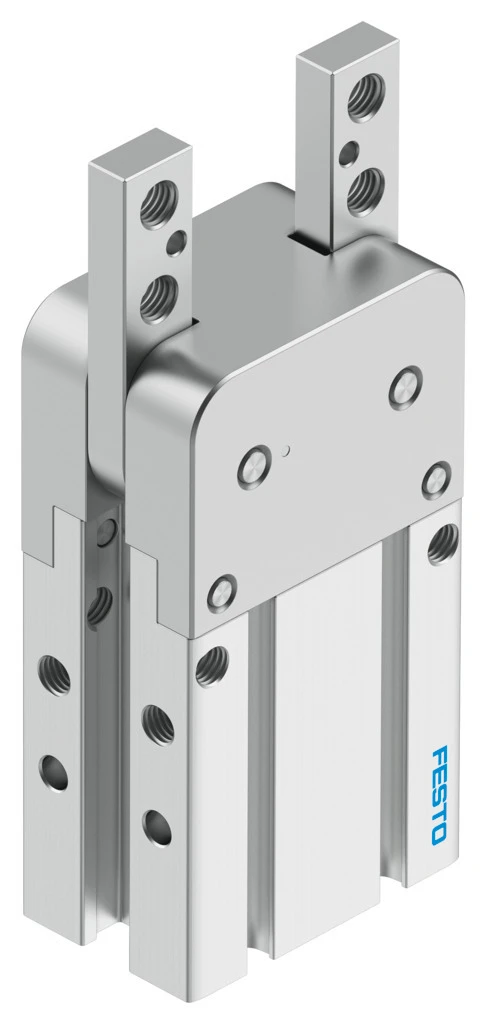

Angle gripper, DHWC-16-A
SKU: 8128711
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Angle gripper DHWC
• Size 16
• Max. replacement accuracy ≤0.2 mm
• Max. opening angle 30 deg
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.1 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Mounting position optional
• Mode of operation Double-acting
• Gripper function Angle
• Gripper force back-up None
• Design Connection direction at side, Force pilot operated motion sequence
• Operating pressure 0.1 MPa - 0.8 MPa
• Pneumatic connection M3
Buy currently uses Select Automation shop pricing and checkout.
Angle gripper DHWC
• The economical angle gripper with high repeat accuracy and high torque is particularly suitable for small parts handling and its low dead weight, compact design and long service life are really impressive.
• Lateral gripper jaw support for high torque loads
• Max. repetition accuracy
• Can be used as a double-acting or single-acting gripper
• Single-acting variant with gripping force backup, normally open (NO)
• Suitable for external and internal gripping
• Wide range of adaptation options on the drives
• Sustainable in production thanks to reduced use of materials
