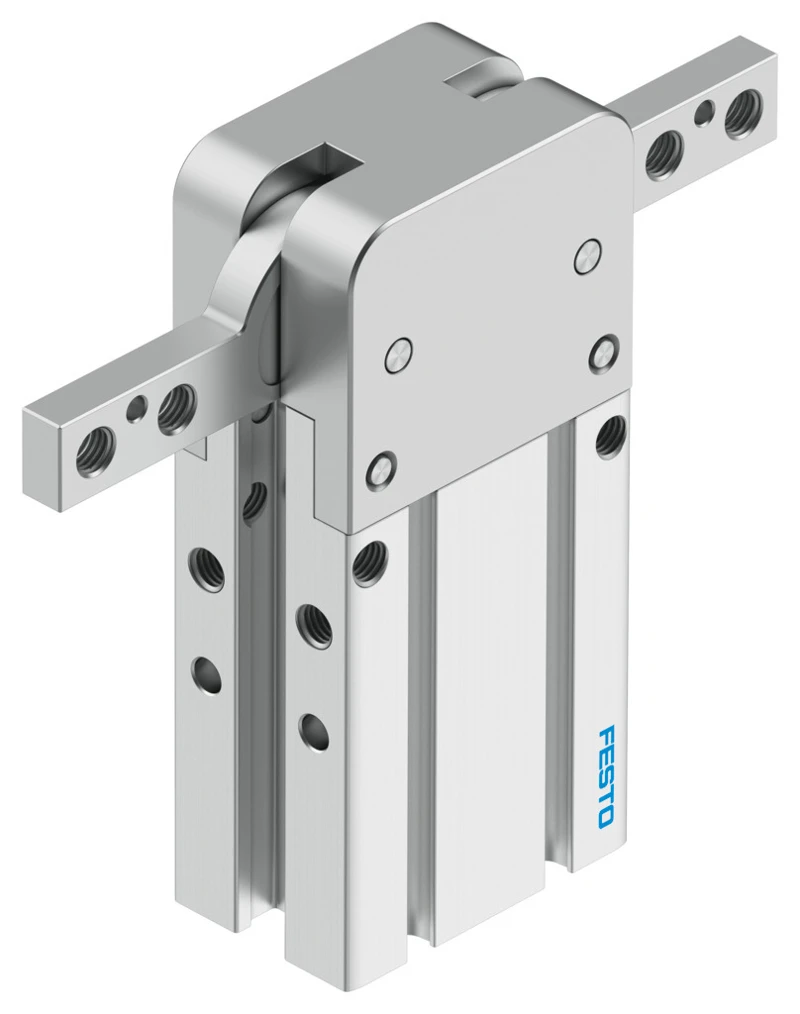

Radial gripper, DHRC-16-A-S-NO
SKU: 8128721
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Radial gripper DHRC
• Size 16
• Max. replacement accuracy ≤0.2 mm
• Max. opening angle 180 deg
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.1 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Mounting position optional
• Mode of operation Single-acting, Open
• Gripper function Radial
• Gripper force back-up During opening
• Design Connection direction at side, Force pilot operated motion sequence
• Operating pressure 0.2 MPa - 0.8 MPa
• Max. torque at gripper My static 1 Nm
• Pneumatic connection M3
Buy currently uses Select Automation shop pricing and checkout.
Radial gripper DHRC
• The economical radial gripper with high repeat accuracy and high torque is particularly suitable for small parts handling and its low dead weight, compact design and long service life are really impressive.
• Lateral gripper jaw support for high torque loads
• Can be used as a double-acting or single-acting gripper
• Single-acting variant with gripping force backup, normally open (NO)
• Suitable for external and internal gripping
• Wide range of adaptation options on the drives
• Sustainable in production thanks to reduced use of materials
