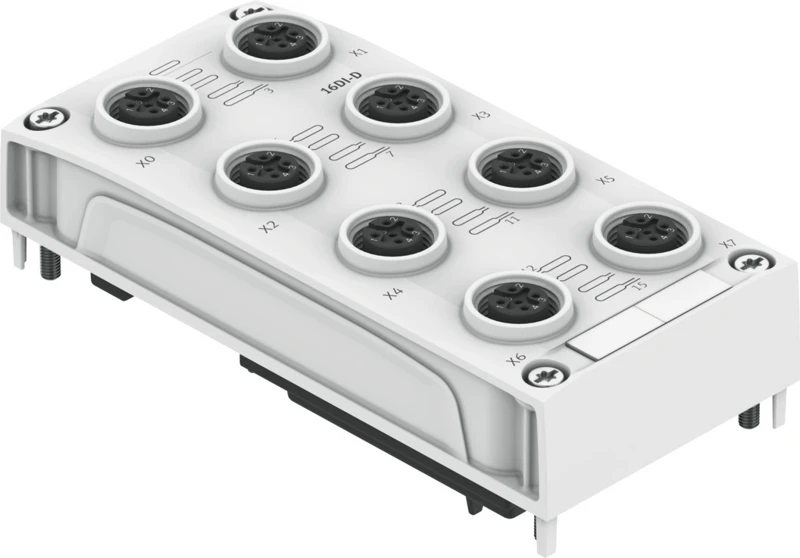

Digital input module, CPX-AP-A-16DI-D-M12-5P
SKU: 8129112
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Automation system CPX-AP-A
• Digital input module
• Dimensions (W x L x H) (incl. interlinking block), 50.1 mm x 107.3 mm x 57.5 mm
• Grid dimension 50.1 mm
• Type of mounting Screw-clamped
• Product weight 96 g
• Mounting position optional
• Ambient temperature -20 °C ... 50 °C
• Note on ambient temperature Observe ambient temperature derating according to IEC 61131-2:2017
• Storage temperature -20 °C ... 70 °C
• Relative air humidity 5 - 95%, Non-condensing
• Nominal altitude of use 79.5 kPa)
• Max. installation height 3500 m
Buy currently uses Select Automation shop pricing and checkout.
Automation system CPX-AP-A
• Modular and lightweight IO system with IP65/IP67 protection
• Can be adapted to Festo valve terminals
• Highly flexible remote IO system with maximum performance
• Real-time capability, transmission rate of 200 Mbps full duplex
• Parameterisable and scalable
• Up to 15 modules in one automation system CPX-AP-A
• Linkages are connected using angled fitting
• Complete IO-Link master V1.1 with data storage mechanism including device parameterisation too
