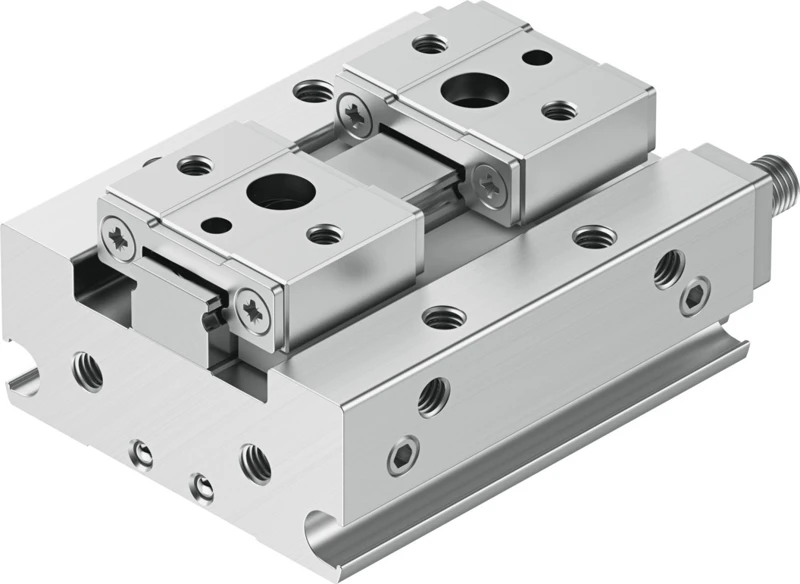

Parallel gripper, HPPF-8-8-A-S
SKU: 8134368
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel grippers HPPF
• Size 8
• Total stroke 8 mm
• Stroke per gripper jaws 4 mm
• Max. angular gripper jaw backlash ax, ay 0 deg
• Max. gripper jaw backlash Sz 0 mm
• Repetition accuracy, gripper ≤0.03 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Mounting position optional
• Mode of operation Double-acting
• Design Flat mounting method for gripper fingers - Rack and pinion - Force pilot operated motion sequence
• Position detection Via proximity switch
• Pneumatic connection M3
Buy currently uses Select Automation shop pricing and checkout.
Parallel grippers HPPF
• The compact, flat and cost-effective parallel grippers HPPF are designed for powerful performance.
• The long service life and high repetition accuracy are the result of the integrated, maintenance-free ball guide and the sturdy design.
• Their reduced copper, zinc and nickel content is just one of the things that makes them ideal for use in the electronics industry, in special machine building as well as in battery production. Or simply everywhere where an extremely flat design is required.
• Optimal: compact and flat design
• Durable: integrated guide and sturdy design
• Economical: best price/performance ratio
• Can be combined: available in many sizes and strokes
• Sustainable thanks to reduced material use and maintenance-free over the entire service life.
