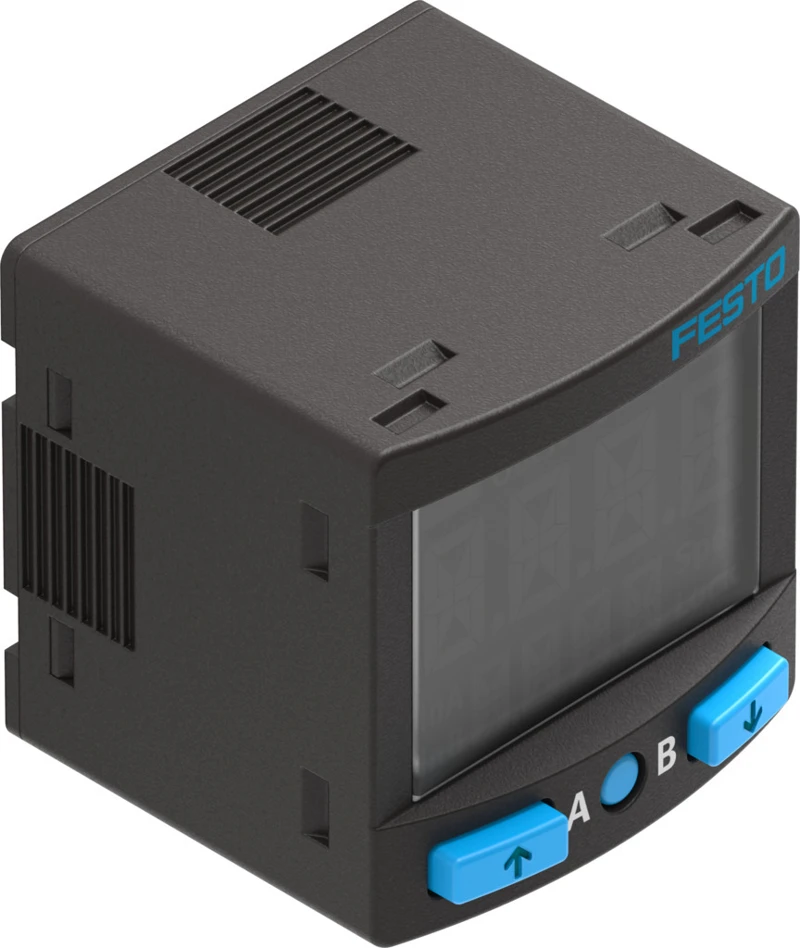

Pressure sensor, SPAN-P10R-G18F-PNLK-PNVBA-L1

Specifications • Pressure sensors SPAN • Measured variable Relative pressure • Measurement method Piezoresistive pressure sensor • Start value for pressure measuring range 0 MPa • Start value for pressure measuring range 0 bar • Start value for pressure measuring range 0 psi • End value for pressure measuring range 1 MPa • End value for pressure measuring range 10 bar • End value for pressure measuring range 145 psi • Max. overload pressure 15 bar • Overload pressure 1.5 MPa • Overload pressure 15 bar • Overload pressure 217.5 psi • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases • Switching element function N/C or N/O contact, switchable • Pneumatic connection Female thread G1/8 • Analogue output 0 - 10 V - 4 - 20 mA - 1 - 5 V
