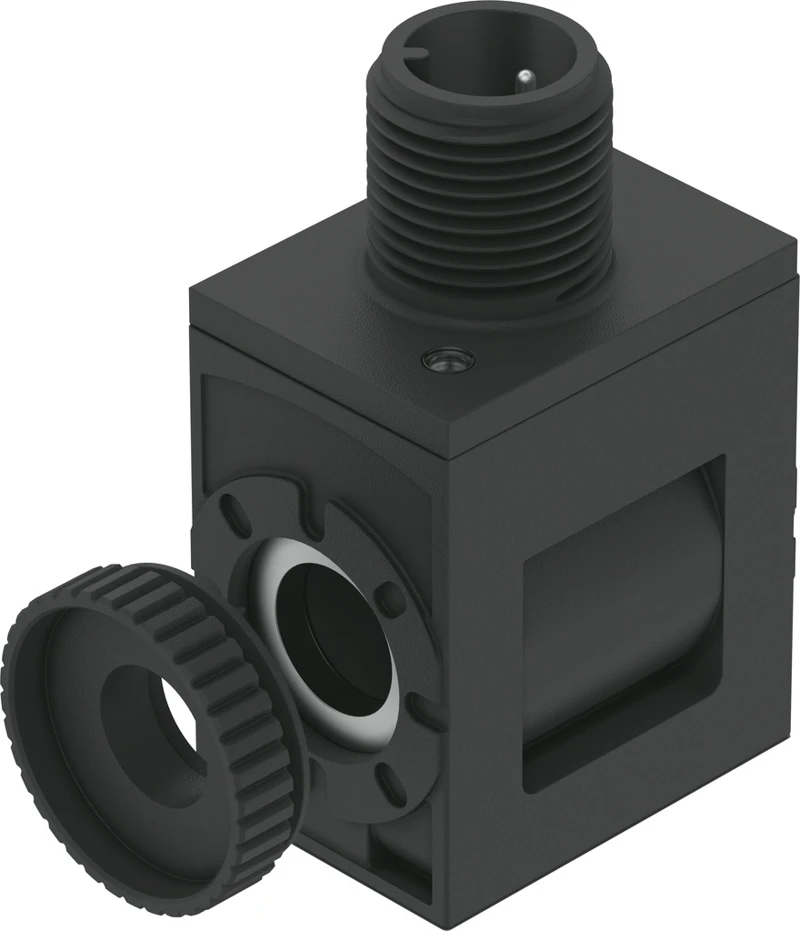

Solenoid coil, VACS-C-R3-1RL

Specifications • Solenoid coils VACS-C-R3, Without socket, plug M12x1, 4-pin, A-coded to EN 61076-2-101 • Mounting position optional • Signal status display LED • Max. switching frequency 5 Hz • Duty cycle 100% • Insulation material class of enamelled wire H • Nominal pick-up current per solenoid coil 108 mA till 80 ms • Nominal current with current reduction 15 mA after 80 ms • Characteristic coil data 24 V DC: low-current phase 0.36 W, high-current phase 2.6 W • Permissible voltage fluctuations +/- 10 % • Approval RCM trademark • CE mark To EU EMC Directive • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Degree of protection IP65 • Ambient temperature -10 °C ... 60 °C • Max. cable length 30 m
