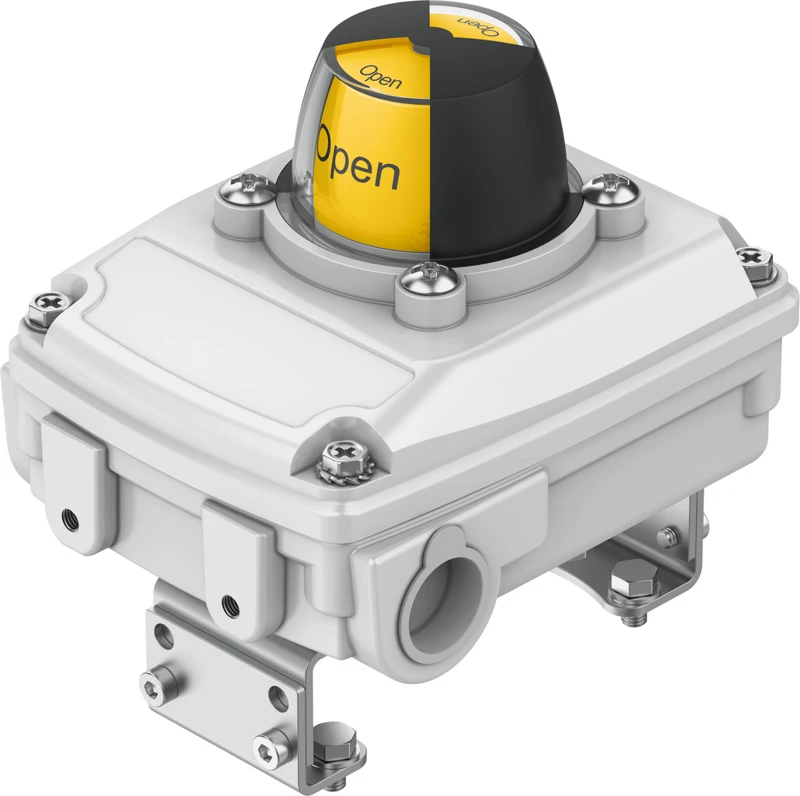

Limit switch box, SRBC-CA4-YR90-MW-22A-1W-C2
SKU: 8137094
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Limit switch boxes SRBC, electromechanical and magnetic reed
• Operational voltage range DC 0 V - 30 V
• Electrical connection Screw terminal
• Position indicator Yellow/red
• Switching element function Toggle switch, single-pole
• Electrical connection 1, connection type Terminal strip
• Electrical connection 1, cable outlet Straight
• Electrical connection 1, connector system Spring-loaded terminal
• Electrical connection 1, number of connections/cores 10
Buy currently uses Select Automation shop pricing and checkout.
Limit switch box SRBC
• The digital sensor box SRBC is quick at detecting the actual position of quarter turn actuators.
• Its corrosion-resistant design is perfect for use in harsh ambient conditions and in outdoor applications.
• Pre-assembled mounting adapter for ease of installation
• The trip cams can be easily set without additional tools
• Sturdy, corrosion-resistant design, ideal for use in harsh ambient conditions
• Clearly visible 3D position indicator allows the current position of the quarter turn actuator to be quickly detected
• With safety functions
• Variants to EU Explosion Protection Directive (ATEX)
