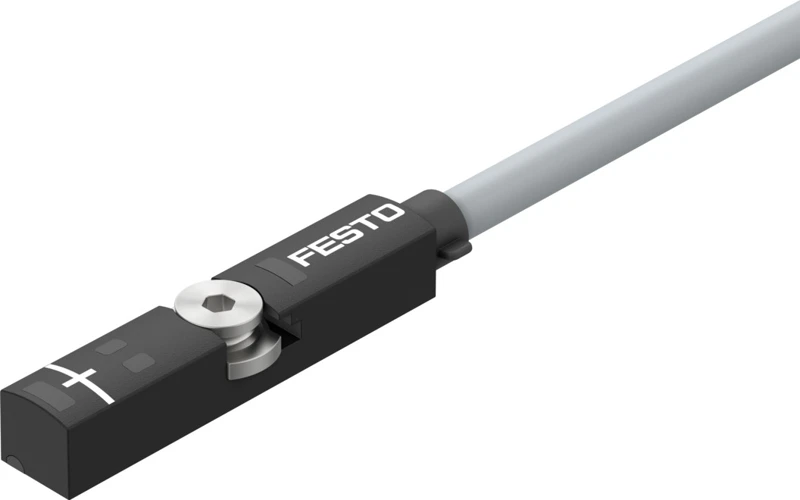

Proximity sensor, SMT-8M-A-NO-24V-E-7,5-OE
SKU: 8138001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinder EPCC
• Accessories, Proximity sensor
• Design For T-slot
• Cable length 7.5 m
• Electrical connection 1, connector system Open end
• Operational voltage range DC 5 V - 30 V
• Switching element function N/C contact
• Switching output NPN
• Measured variable Position
• Measuring principle Magneto-resistive
• Ambient temperature -40 °C ... 85 °C
• Repetition accuracy 0.2 mm
• Switch-on time ≤1.3 ms
• Switch-off time ≤7.3 ms
• Max. switching frequency 130 Hz
• Max. output current 100 mA
Buy currently uses Select Automation shop pricing and checkout.
Proximity switch SMT-8M-A
• Electronic proximity switch for T-slot, can be inserted from above, configurable, universal standard solution.
• Measuring principle: magneto-resistive
• For universal use
• Individually configurable or pre-assembled
• Inserted in the slot from above, flush with the cylinder profile
• LED switching status indication
• LED operating reserve indication
• Cable length 0.1 ... 30 m
