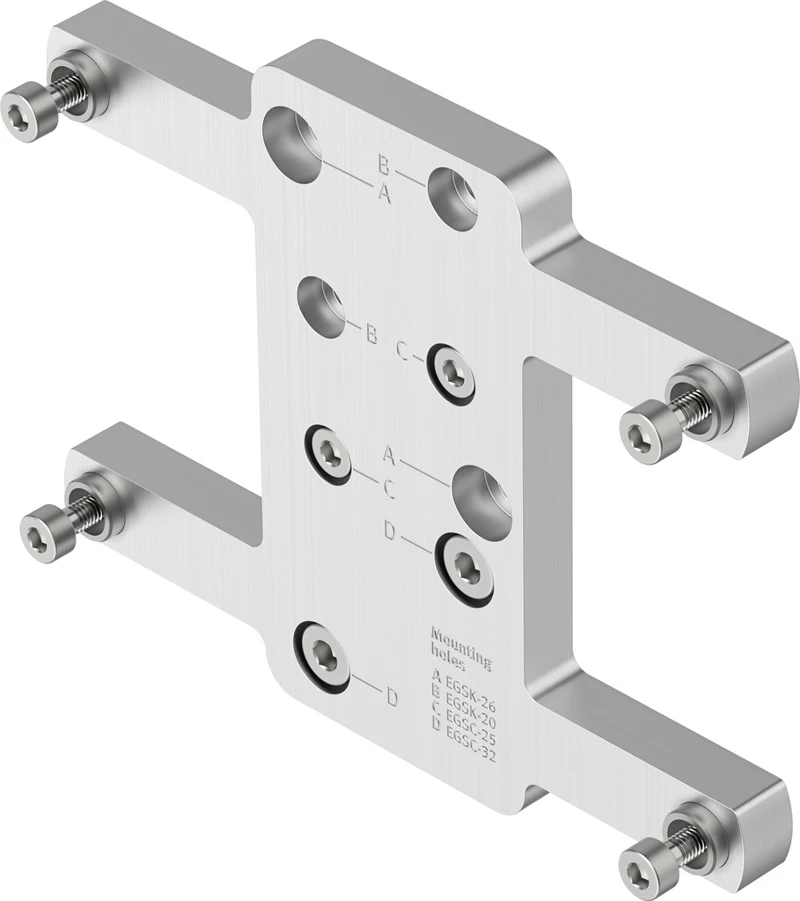

Adapter plate kit, EHAM-MA-E19-25-V3
SKU: 8140776
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Adapter plate kit EHAM
• EHAM-MA-E19-25-V3 For VAEM-V-S8EPRS2
• Size 20, 25, 26, 32
• Mounting position Vertical
• Design Mounting kit
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -20 °C ... 80 °C
• Product weight 135 g
• Type of mounting Via through-hole and screw
• Interface code, basis E8-35
• Interface code, setup E8-35
• Note on materials RoHS-compliant
• Material adapter plate Anodised aluminium
• Material screws Steel
• Material centering elements High-alloy steel
Buy currently uses Select Automation shop pricing and checkout.
Adapter plate kit EHAM
• The adapter plate kits are used for mounting the dispense heads and dispense heads/valve control module VTOF, VTOE, VTOI and VAEM on the electric slides EGSC and EGSK
