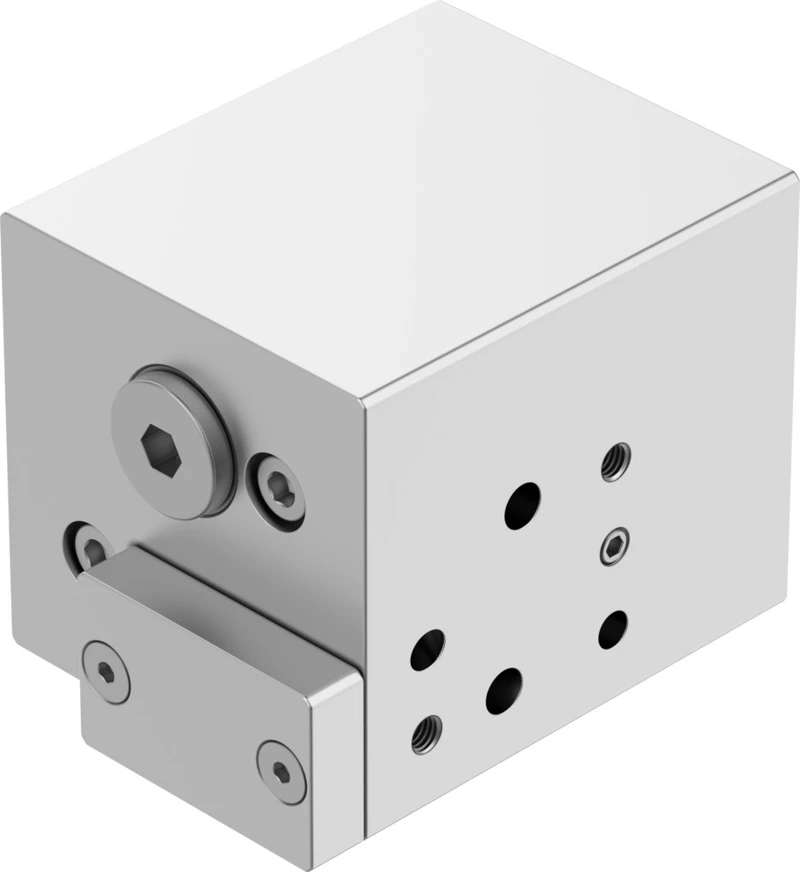

Manifold block, VABS-S7-RB-B-G14-R12

Specifications • Valve series VOFC • Accessories, Sub-base VABS • Mounting position optional • Pilot air supply External, Internal • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-] • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Degree of protection IP65, In assembled state • Product weight 750 g • Type of mounting With through-hole • Pilot air port 12 G1/4 • Pneumatic connection, port 1 G1/4
