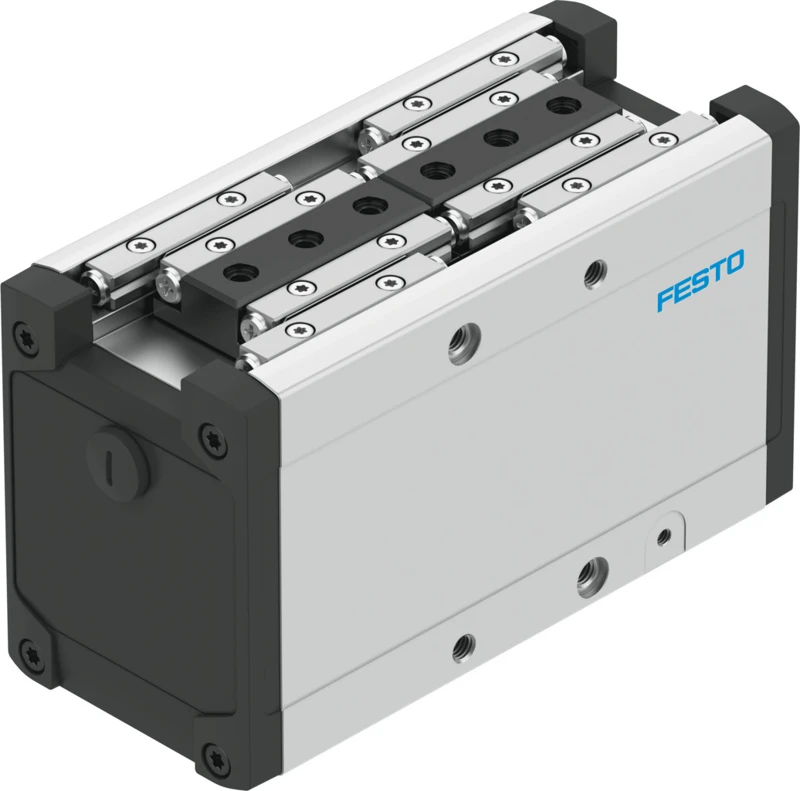

Parallel gripper, HEPP-36-45-EP
SKU: 8146665
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel gripper HEPP
• Size 36
• Total stroke 45 mm
• Stroke per gripper jaws 22.5 mm
• Max. gripper jaw backlash Sz 0.35 mm
• Repetition accuracy, gripper 0.02 mm
• Number of gripper jaws 2
• Drive system Electrical
• Mounting position optional
• Controller operating mode Interpolated mode via fieldbus
• Gripper function Parallel
• Design Toothed belt, Electric gripper, With ball screw
• Guide Roller bearing guide
• Position detection Motor encoder
Buy currently uses Select Automation shop pricing and checkout.
Parallel gripper HEPP
• The powerful, compact and versatile electric gripper HEPP is suitable for a wide range of workpieces in electric systems or applications without compressed air.
• It is optimised for the electronics and small parts industry, laboratory automation and special machine building.
• Powerful and flexible
• Dynamic motor for adjustable motion response
• Easy, adjustable parameterisation
• Compact thanks to integrated controller
• High precision thanks to cross-roller guide
• Safe thanks to integrated holding brake
• Control via PROFINET®, EtherNet/IP®, EtherCat®
• Sustainable in production thanks to reduced use of materials
