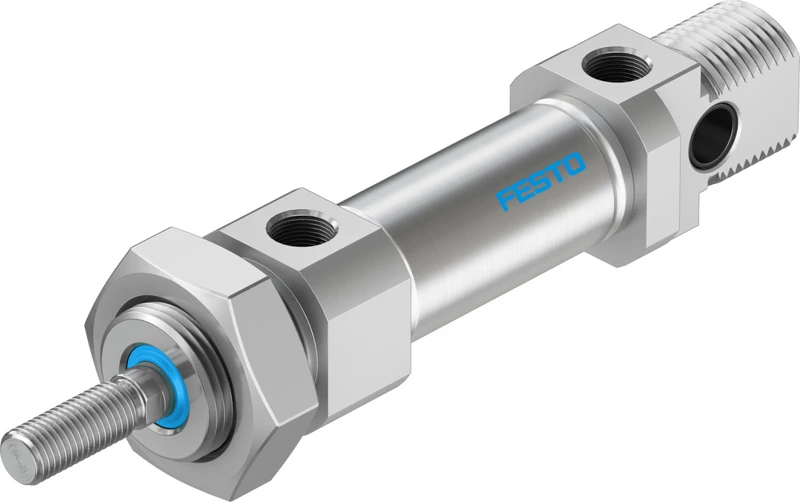

Standards-based cylinder, DSNU-20- -F1A-

Specifications • Round cylinders DSNU, for manufacturing lithium-ion batteries • Stroke 1 mm ... 320 mm • Piston diameter 20 mm • Piston rod thread M8 • Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends • Mounting position optional • Conforms to standard CETOP RP 52 P, ISO 6432 • Design Piston, Piston rod, Cylinder barrel • Position detection Via proximity switch • Symbol 00991217 • Variants Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Extended male piston rod thread, Piston rod with female thread, Piston rod with male thread shortened at one end, Extended piston rod, Axial supply port, Lateral supply port, Through piston rod
