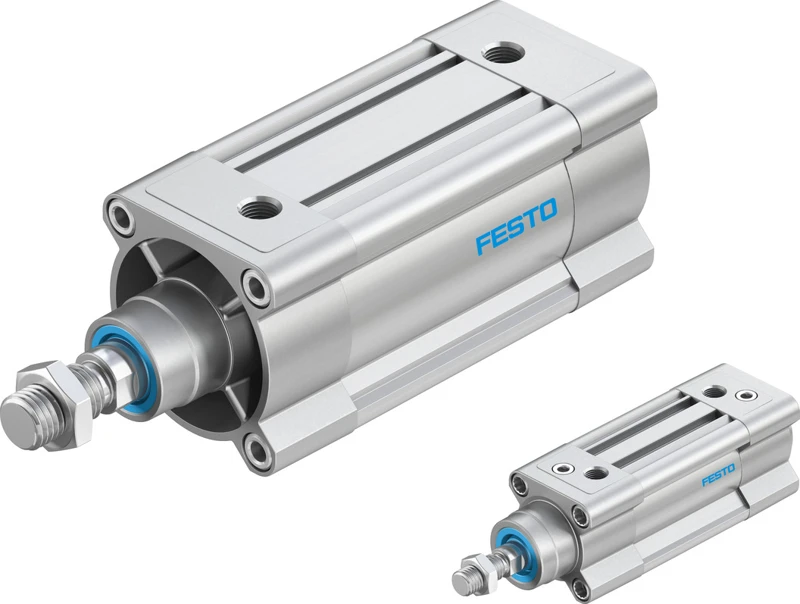

Standards-based cylinder, DSBC-...-80- -F1A-

Specifications • Standards-based cylinders DSBC, ISO 15552 • Stroke 1 mm ... 2800 mm • Piston diameter 80 mm • Piston rod thread M20x1.5, M12 • Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends • Mounting position optional • Conforms to standard ISO 15552 • Piston-rod end Male thread, Female thread • Design Piston, Piston rod, Profile barrel • Position detection Via proximity switch • Variants Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Extended male piston rod thread, Piston rod with female thread, Extended piston rod, Through piston rod, Sensor slots on 3 profile sides, Piston rod at one end
