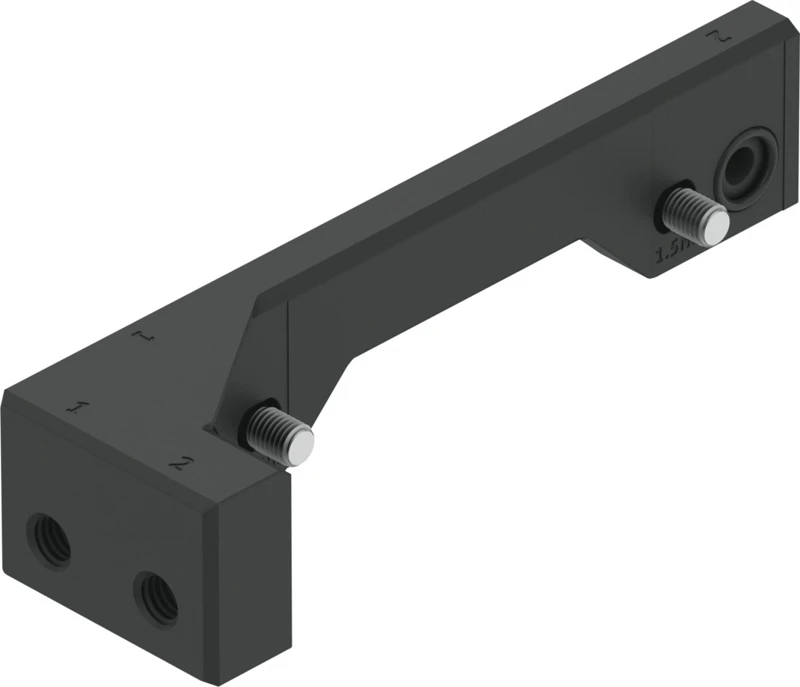

Connection kit, DADG-AK-G8-12-30

Specifications • Mini slide DGST • Accessories, Connection set DADG-AK-G8-... • Size 12 • Stroke 30 mm • Operating pressure 0.1 MPa ... 0.8 MPa • Operating pressure 1 bar ... 8 bar • Operating pressure 14.5 psi ... 116 psi • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Max. tightening torque 1.5 Nm • Tolerance for tightening torque ±10% • Max. tightening torque pneumatic connection 1 0.7 Nm • Product weight 13.6 g • Pneumatic connection M5
