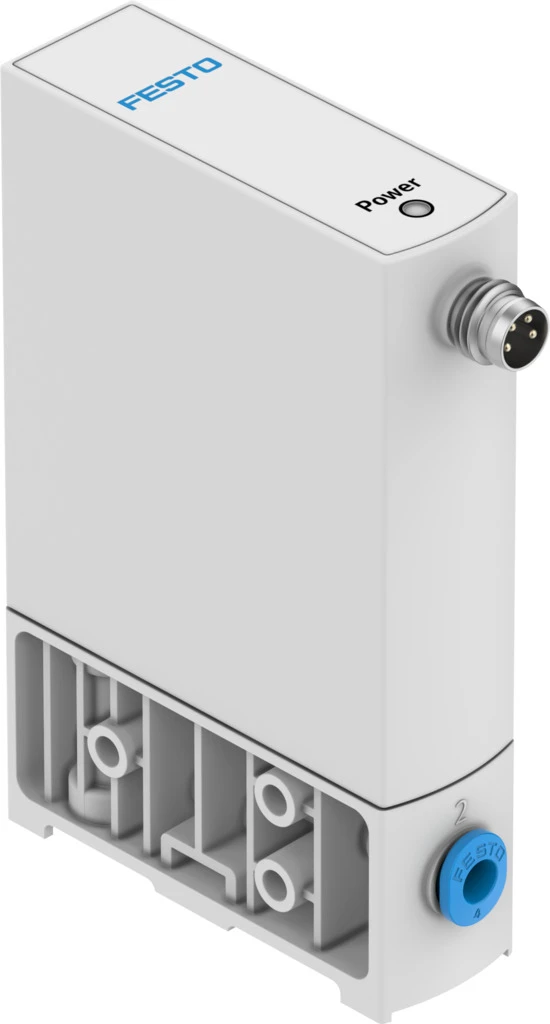

Proportional-pressure regulator, VEAA-L-3-D2-Q4-V2-1R1
SKU: 8153645
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional-pressure regulator VEAA
• Valve function 3-way proportional pressure regulator
• Type of piloting Direct
• Type of reset Mechanical spring
• Type of actuation Electric
• Mounting position optional
• Sealing principle Soft
• Symbol 00995607
• Ambient temperature 0 °C ... 50 °C
• Media temperature 5 °C ... 50 °C
• Storage temperature -20 °C ... 70 °C
• Dimensions (W x L x H) 15 x 54.5 x 85 mm
• Pneumatic connection, port 1 QS-4
• Electrical connection 4-pin - M8x1 - Plugs - To EN 60947-5-2
• Standard nominal flow rate (standardised to DIN 1343) 7 l/min
• Standard nominal flow rate 2-3 3 l/min
Buy currently uses Select Automation shop pricing and checkout.
Proportional-pressure regulator VEAA
• For pressure ranges up to 10 bar: piezo technology makes the VEAA extremely precise and gives it a very long service life.
• Other benefits include extremely short switching times, quiet operation and very low power consumption.
• Silent operation
• Very low power consumption
• Highly precise
• Integrated piezo technology
• Durable
• Mounting: via through-holes, H-rail mounting, on mounting plate or sub-base
• Sustainable operation thanks to reduced pressure level and efficient control
