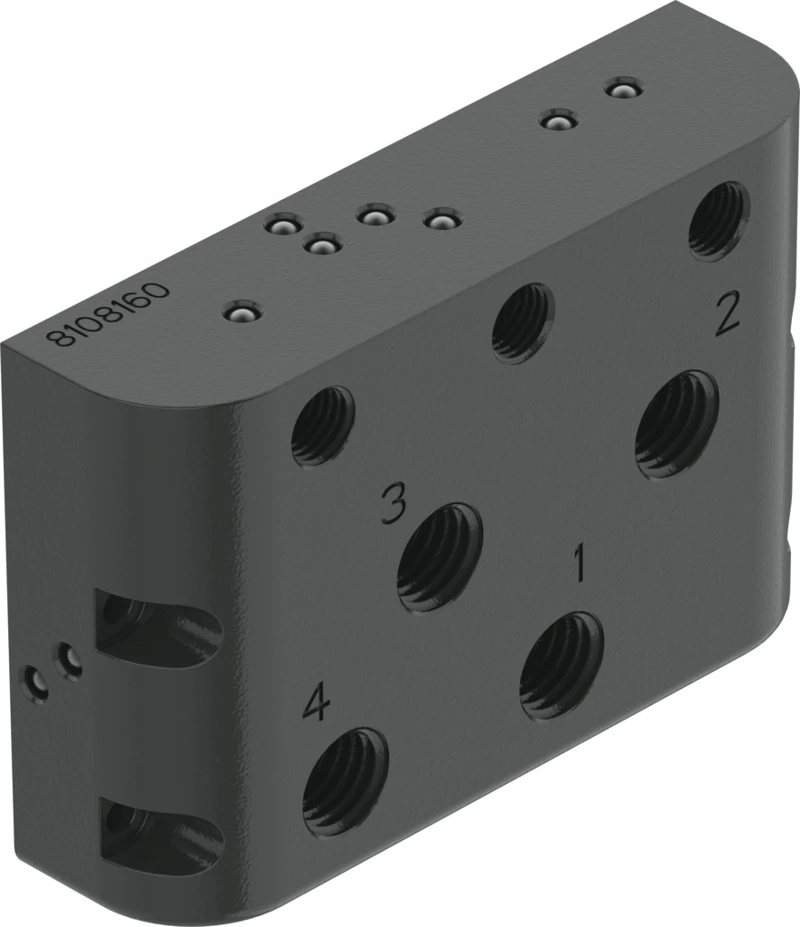

Manifold block, CAPS-M1-VDE1-D-C-AL-G14-V
SKU: 8154585
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Positioner CMSH
• Accessories, Manifold block CAPS for CMSH-...-SD-...
• Dimensions (W x L x H) 65 mm x 104 mm x 28 mm
• Mode of operation Double-acting
• Design characteristics Safety position - pneumatic outlets closed
• Standard nominal flow rate (standardised to DIN 1343) 270 l/min
• LABS (PWIS) conformity VDMA24364 zone III
• Product weight 465 g
• Type of mounting To VDI/VDE 3845
• Pneumatic connection G1/4
• Note on materials RoHS-compliant
• Material screws High-alloy stainless steel
• Material housing Aluminium, powder-coated
Buy currently uses Select Automation shop pricing and checkout.
Manifold block CAPS
• Prepared for positioner CMSH-V-SD with the mechanical interface for the sub-base version and switchable with mode of operation in the single-acting/double-acting version
• Determines the operating mode of the positioner CMSH-V-SD
• Variants with mechanical interface to VDI/VDE 3845 or to VDI/VDE 3847-2
• Variants with or without pressure gauge connection
