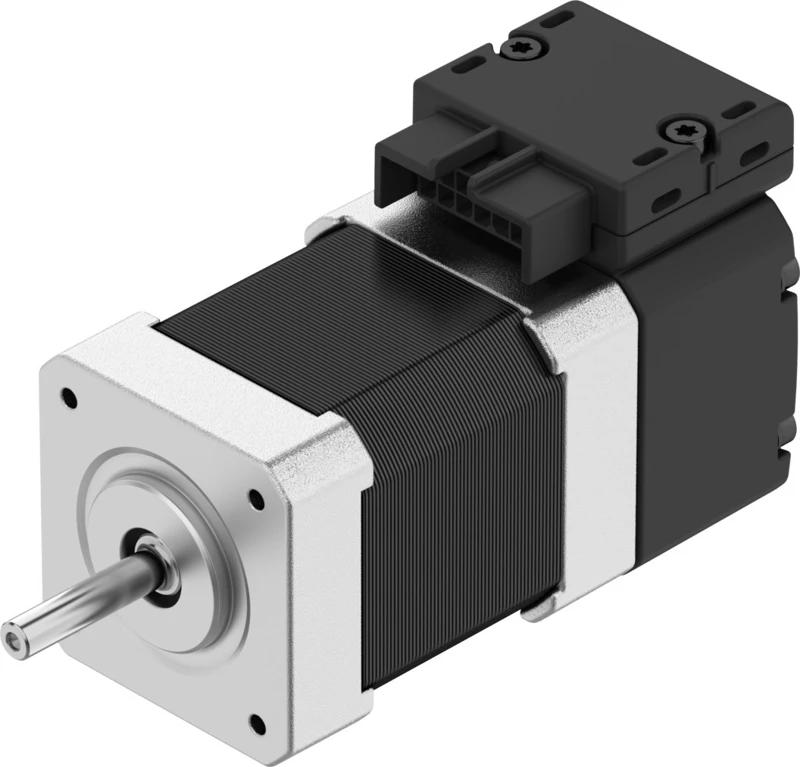

Stepper motor, EMMB-ST-42-L-S
SKU: 8156131
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Stepper motors EMMB-ST
• Ambient temperature -15 °C ... 40 °C
• Note on ambient temperature Up to 80°C with derating -2%/°C
• Max. installation height 4000 m
• Note on max. installation height As of 1,000 m: only with derating of -1.0% per 100 m
• Storage temperature -20 °C ... 70 °C
• Relative air humidity 0 - 90%
• Conforms to standard IEC 60034
• Temperature class as per EN 60034-1 B
• Max. winding temperature 130 °C
• Rating class as per EN 60034-1 S1
• Motor type to EN 60034-7 IM B5, IM V1, IM V3
• Total mass moment of inertia of output 0.082 kgcm²
• Max. rotational speed 3200 1/min
• Stepper angle for complete step 1.8 deg
Buy currently uses Select Automation shop pricing and checkout.
Stepper motor EMMB-ST
• Cost-effective stepper motors for applications with basic requirements, particularly suitable for series machine builders and applications in Electronics and Assembly.
• Absolute encoder, single or multiturn (without battery)
• Optionally with holding brake
• 3 flange sizes MH: 0.22 Nm ... 5.3 Nm
• OCP cable (one cable plug) with space-saving plug, can be positioned to the front or rear
• Motor in IP20, without UL certification
• "Electronic rating plate" with motor correction table
• Cable length of up to 25 m
