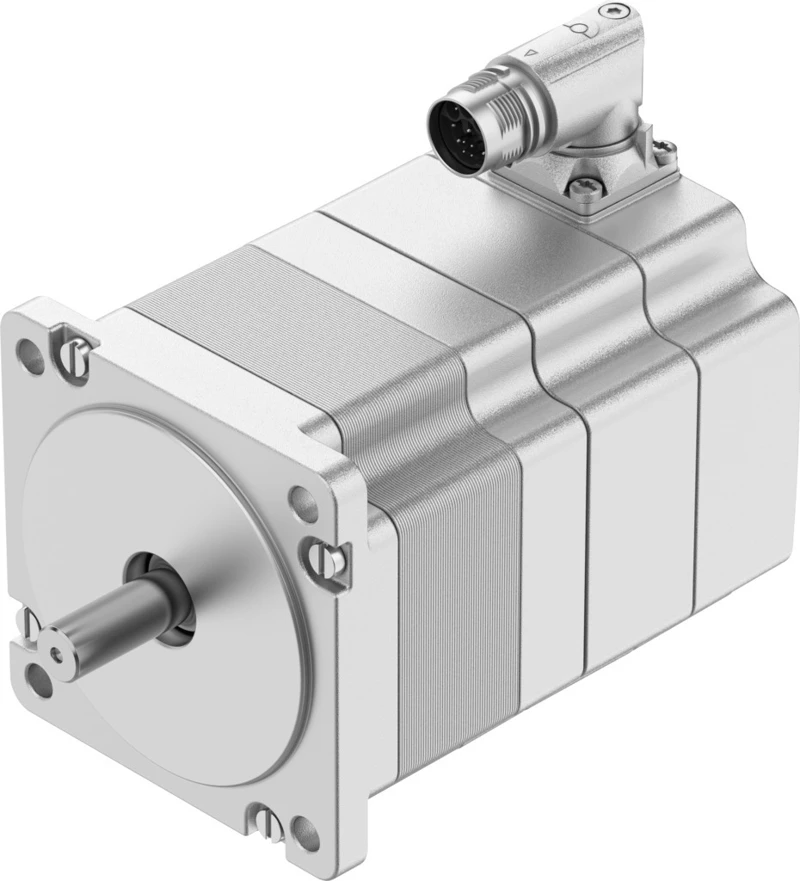

Stepper motor, EMMT-ST-87-S-RB

Specifications • Stepper motors EMMT-ST • Ambient temperature -15 °C ... 40 °C • Note on ambient temperature Up to 80°C with derating -2%/°C • Max. installation height 4000 m • Note on max. installation height As of 1,000 m: only with derating of -1.0% per 100 m • Storage temperature -20 °C ... 70 °C • Relative air humidity 0 - 90% • Conforms to standard IEC 60034 • Temperature class as per EN 60034-1 B • Max. winding temperature 130 °C • Rating class as per EN 60034-1 S1 • Motor type to EN 60034-7 IM B5, IM V1, IM V3 • Total mass moment of inertia of output 1.11 kgcm² • Max. rotational speed 2200 1/min • Stepper angle for complete step 1.8 deg
